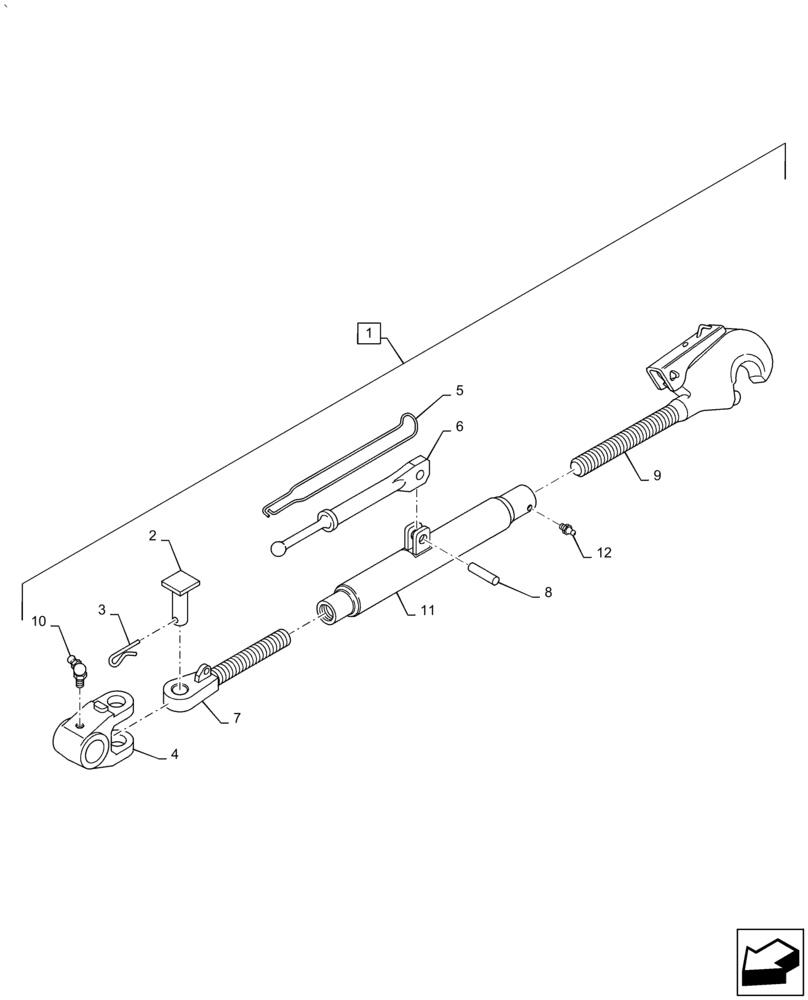

Запчасти Case IH PUMA1854 (37.120.AA[02]) - TOP LINK ASSEMBLY "CBM" - BREAKDOWN (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47779820

LIFT ARM

Assy

1шт.

2

5197827

PIN

1шт.

3

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

4

87358968

YOKE

1шт.

5

5140619

SPRING,215mm L

1шт.

6

5172394

LEVER

1шт.

7

5197814

LIFT LINK END ASSY

1шт.

8

14613471

ROLL PIN,12mm OD x 40mm L

1шт.

9

82033135

HOOK

1шт.

10

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

11

47653582

TURNBUCKLE

1шт.

12

378716A1

LUBE NIPPLE,Hex, M10 x 1 x 17.5mm L

2шт.
