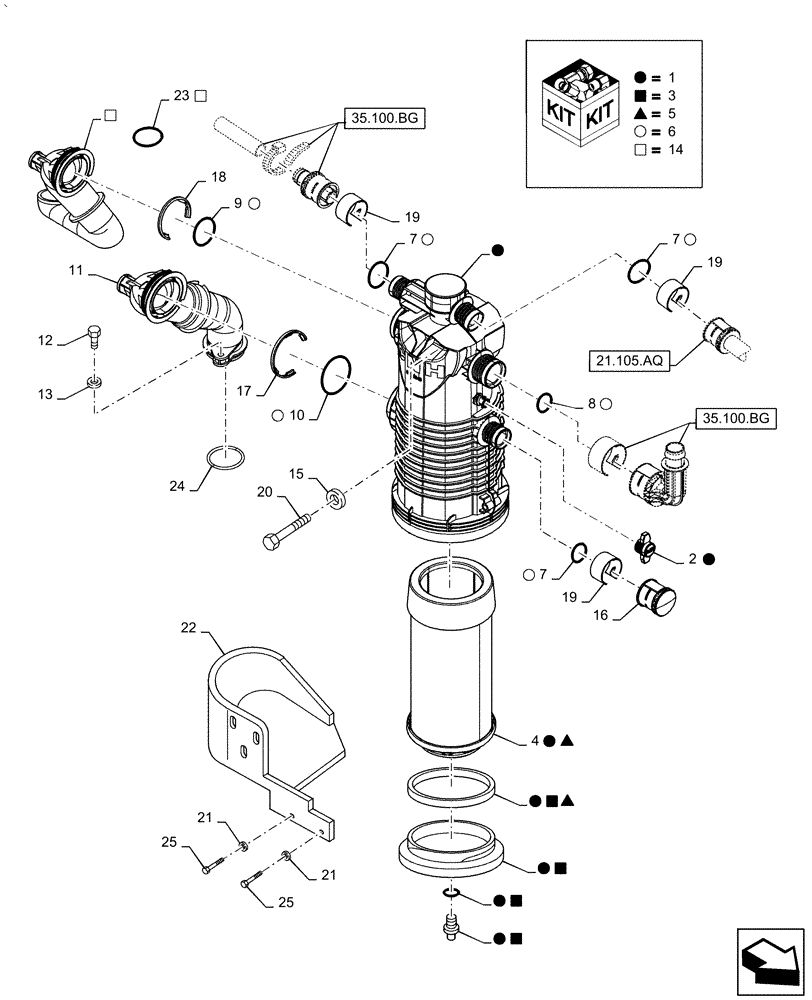

Запчасти Case IH PUMA1854 (35.220.AE) - HYDRAULIC PUMP, OIL FILTER (35) - HYDRAULIC SYSTEMS

1

87313049

FILTER ASSY

Kit

1шт.

2

87705160

ARRESTER

1шт.

3

87708150

HYDRAULIC OIL FILTER,Filter & Seal

1шт.

4

87395844

ELEMENT

5шт.

5

87705159

FILTER COVER

Kit

1шт.

6

87705156

SEAL KIT

1шт.

7

87381700

O-RING,25.50mm ID x 2.53mm

3шт.

8

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

O-Ring

1шт.

9

87381702

O-RING,53.5mm ID x 2.387mm OD x 3.53mm

1шт.

10

87381699

O-RING,63.50mm ID x 3.53mm

1шт.

11

87473619

TUBE

1шт.

12

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

1шт.

13

14496607

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

14

47689911

SUCTION PIPE

1шт.

15

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

16

87330798

PLUG,46mm ID

1шт.

17

87381695

CIRCLIP,8mm Thk

1шт.

18

87381696

SNAP RING,8mm Thk, Ext

1шт.

19

84121298

SNAP RING,30mm Thk, Ext

3шт.

20

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

2шт.

21

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

22

87758486

SHIELD

1шт.

23

87705157

SEAL

1шт.

24

87705158

GASKET KIT

1шт.

25

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.
