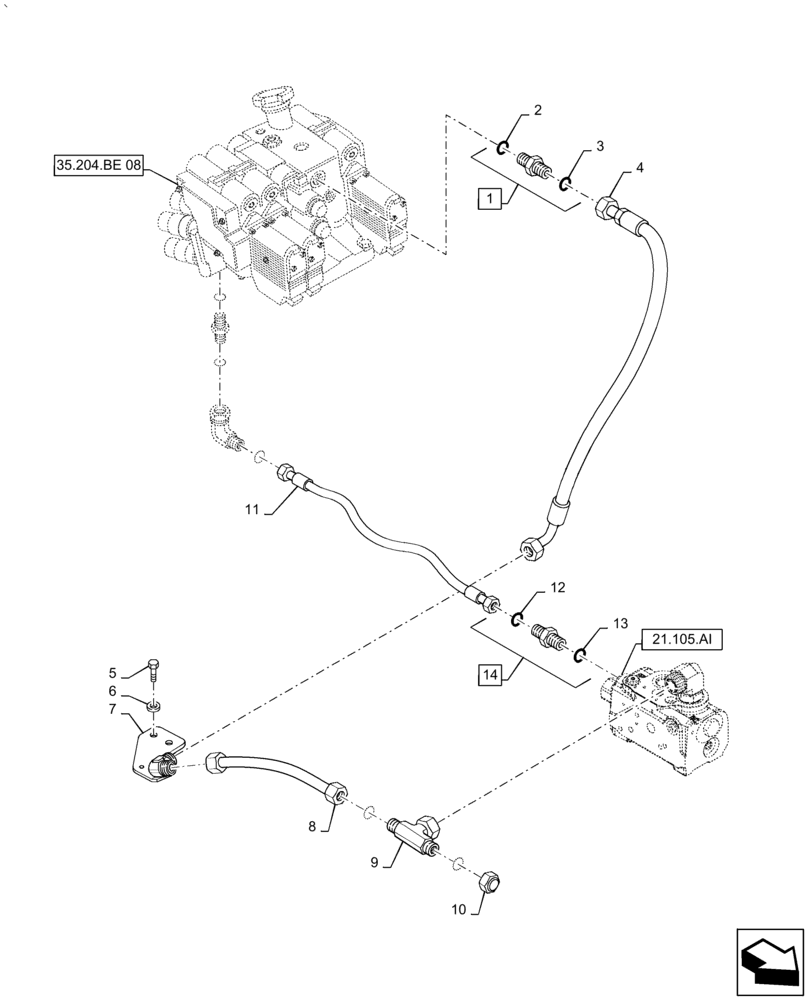

Запчасти Case IH PUMA1854 (35.100.AR[02]) - LIFTER LINES VALVES LOAD SENSE LINE (35) - HYDRAULIC SYSTEMS

1

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

1шт.

2

14438185

O-RING,24mm ID x 3mm

1шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

4

87316346

HYDRAULIC HOSE,19mm ID x 693mm L

From Priority Valve to Remote Valves

1шт.

5

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

6

12642405

WASHER,M10 x 20 x 1

2шт.

7

87318333

BRACKET

1шт.

8

87316329

HYD TUBE

From Priority Valve to Remote Valves

1шт.

9

87328818

TEE

1шт.

10

5189904

PLUG

1шт.

11

87391563

HOSE,6.4mm ID x 730mm L, SAE 100R2

Load Sensing from Priority Valve to Remote Valves

1шт.

12

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

13

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

14

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

1шт.
