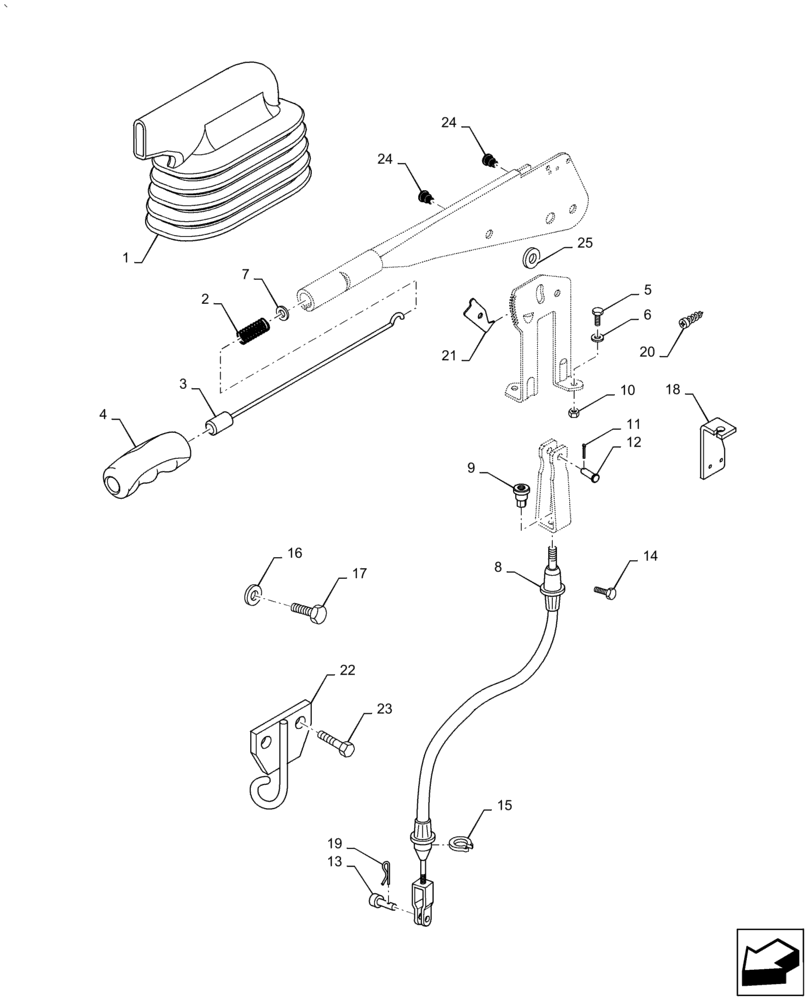

Запчасти Case IH PUMA1854 (33.110.AJ[01]) - HAND BRAKE CONTROL (33) - BRAKES & CONTROLS

1

84213451

BOOT

1шт.

2

84199076

SPRING,11.25mm OD x 44.5mm L

1шт.

3

81870377

BUTTON

1шт.

4

81866090

HANDLE GRIP

1шт.

5

11106224

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

81866092

WASHER,5.5mm ID x 13.4mm OD x 1.2mm Thk

1шт.

8

84140203

BOWDEN CONTROL

1шт.

9

82000974

NUT,Adj., M8, 1.25 Pitch, 23.00mm High, Zinc

1шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

11

81813880

COTTER PIN,3/32" x 3/4"

1шт.

12

83902558

PIN,3/8" x 1.312"

1шт.

13

10033411

PIN,10mm OD x 27mm L

1шт.

14

87305546

SCREW,Phillips Drive, Oval HD, M5 x 10mm, Cl 4.8

1шт.

15

11087374

CIRCLIP,M13

1шт.

16

82879352

LOCK WASHER,M12

2шт.

17

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

18

87394905

BRACKET

1шт.

19

10766901

COTTER PIN,M3.2 x 25

1шт.

20

81870039

FASTENER,M8 x 1.5 x 22mm

2шт.

21

82863025

PAWL,4.5mm Thk

1шт.

22

82034369

SLIDE GUIDE

1шт.

23

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

24

82000812

PIN,7.8mm OD x 7.4mm L

2шт.

25

81866089

WASHER,Flat, 12.00mm ID x 23.00mm OD x 2.00mm

2шт.
