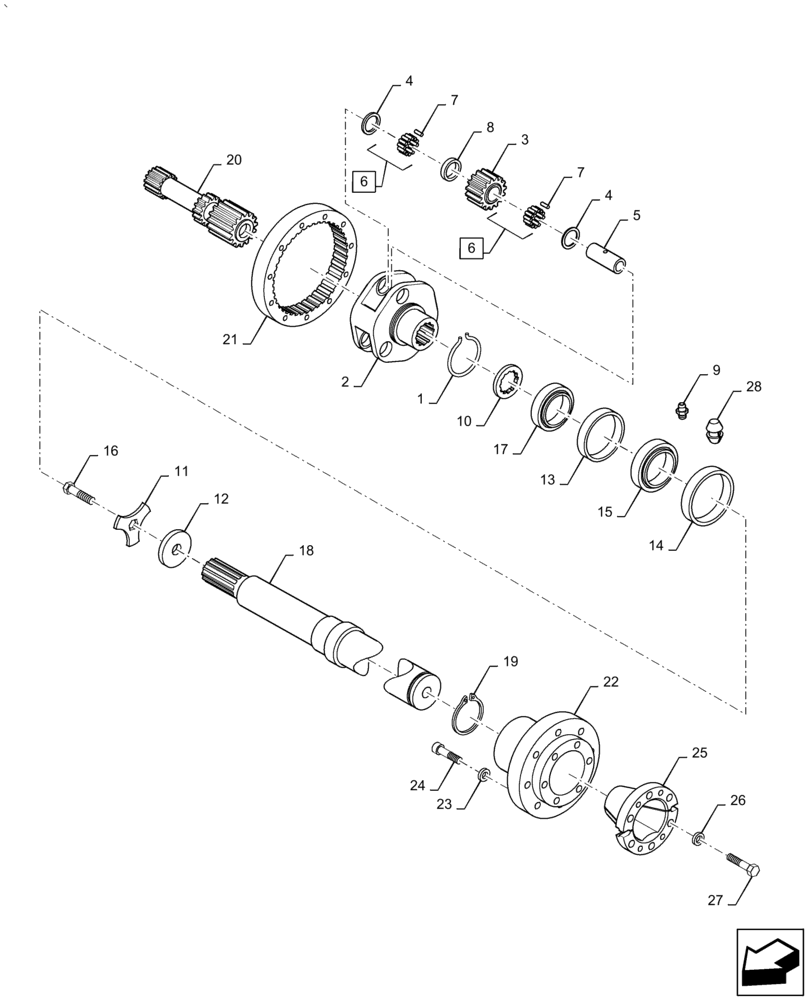

Запчасти Case IH PUMA1854 (25.310.AE) - FINAL DRIVE, SHAFT & GEAR (25) - FRONT AXLE SYSTEM

1

5136132

CIRCLIP,4mm Thk

2шт.

2

87307356

PINION CARRIER

Gear, For Model T2104, T2304

2шт.

2

47523152

SUPPORT

For Model T1804

2шт.

3

87307351

IDLER PINION

For Model T2104, T2304

6шт.

3

87558449

IDLER PINION

For Model T1804

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

87307359

PIN,62.4mm OD x 149.5mm L

For Model T2104, T2304

6шт.

5

5136130

PIN,62.4mm OD x 134mm L

For Model T1804

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

62шт.

8

87307350

SPACER,64.5mm ID x 76.3mm OD x 19mm L

For Model T2104, T2304

6шт.

8

5136133

SPACER,64.5mm ID x 76.3mm OD x 5mm L

For Model T1804

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

87307355

THRUST WASHER,83mm ID x 117mm OD x 5mm Thk

For Model T2104, T2304

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

For Model T1804

2шт.

11

5124397

LOCKING PLATE

2шт.

12

84370195

WASHER,22.5mm ID x 100mm OD x 10mm Thk

2шт.

13

5154451

SEAL,95mm ID x 120mm OD x 12mm Thk

For Model T2104, T2304

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

For Model T1804

2шт.

14

5196486

SEAL,114mm ID x 146mm OD x 16mm Thk

For Model T1804

2шт.

15

87307342

TAPERED BEARING,100mm ID x 150mm OD x 39mm W

For Model T2104, T2304

2шт.

15

5188472

BALL BEARING,95mm ID x 145mm OD x 39mm W

For Model T1804

2шт.

16

47618253

BOLT,Hex, M22 x 1.5 x 55mm, Full Thd, Cl 10.9

2шт.

17

87307345

TAPERED BEARING,90mm ID x 140mm OD x 32mm W

For Model T2104, T2304

2шт.

18

87309277

MAIN SHAFT

For Model T2104, T2304

2шт.

19

11082174

CIRCLIP,105mm OD, DAC

2шт.

20

87307366

GEAR SHAFT

For Model T2104, T2304

2шт.

20

87558448

GEAR SHAFT

For Model T1804

2шт.

21

87307352

RING GEAR

2шт.

22

47126431

HUB

2шт.

23

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

20шт.

24

87688508

BOLT,Hex, M22 x 2.5 x 90mm, Cl 8.8

12шт.

25

87645102

WEDGE,Lock, Silver

2шт.

26

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

12шт.

27

87688509

BOLT,Hex, M22 x 2.5 x 190mm

20шт.

28

81865567

PLUG,M18.5 Hole

2шт.
