Запчасти Case IH PUMA1854 (25.108.AS) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (25) - FRONT AXLE SYSTEM

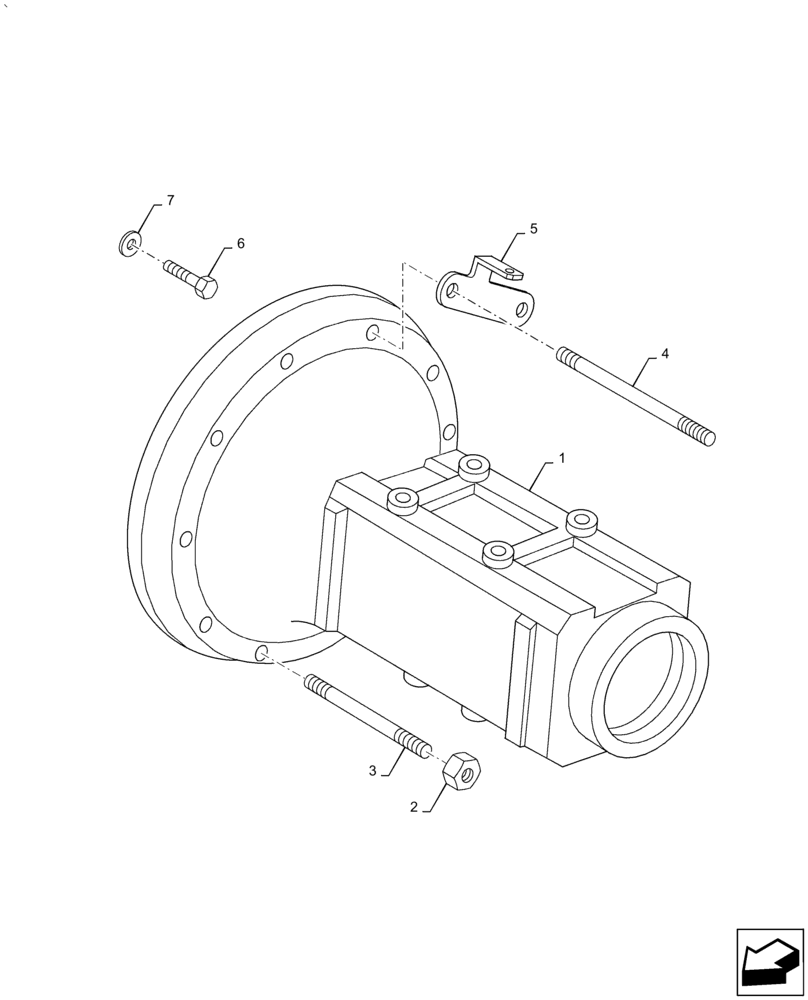

Схема запчастей Case IH PUMA1854 - (25.108.AS) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (25) - FRONT AXLE SYSTEM
2
7
6
1
5
4
3

Артикул

Название

Примечание

Количество

1

47135687

SHAFT HOUSING

For Model PUMA 1854

2шт.

1

84486564

AXLE HOUSING

For Model PUMA 2104

2шт.

2

12164124

NUT,M16 x 1.5, Cl 8

24шт.

3

47693628

STUD

17шт.

4

47693628

STUD

M16 x 32 x 120

7шт.

5

84488701

BRACKET

RH

1шт.

5

84600112

BRACKET

LH

1шт.

6

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

7

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 9
