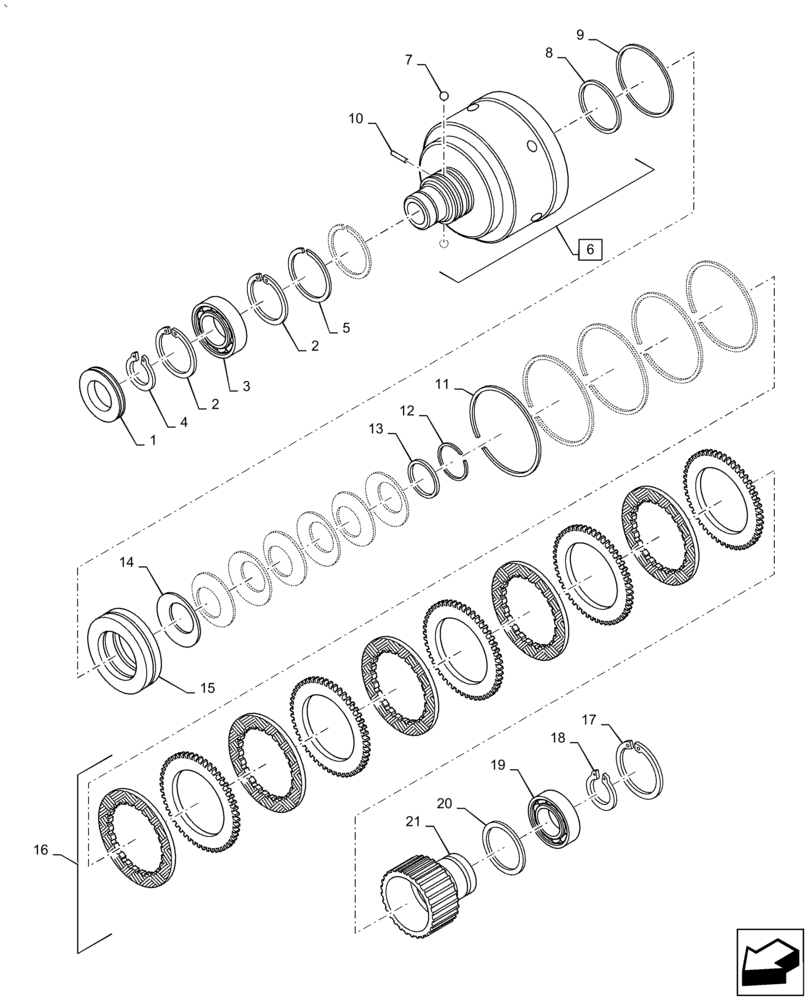

Запчасти Case IH PUMA1854 (21.155.AZ[02]) - SPEED GEARS AND CLUTCHES - "A" CLUTCH AND GEARS (21) - TRANSMISSION

1

84561324

SEAL,55mm ID x 90mm OD x 10mm Thk

1шт.

2

11062476

SNAP RING,M90, Int

2шт.

3

5122846

BALL BEARING,55mm ID x 90mm OD x 18mm W

1шт.

4

11069576

SNAP RING,M55, Ext

1шт.

5

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

SEALRING

2шт.

6

87314799

CLUTCH HOUSING

1шт.

7

20063460

BALL,7.14mm OD, Gr 100

2шт.

8

5160154

GASKET,79.97mm ID x 87.5mm OD x 3.2mm Thk

1шт.

9

5172235

GASKET,144.55mm ID x 152.06mm OD x 3.2mm Thk

1шт.

10

14158470

LOCK PIN,M2 x 10, Slotted

1шт.

11

5166536

SPRING,173mm OD x 1.27mm Thk

5шт.

12

5162253

CIRCLIP,2mm Thk

1шт.

13

5162263

RETAINER CUP,68mm ID x 78mm OD x 3mm Thk

1шт.

14

87547943

SPRING,Belleville, 68mm ID x 1.9mm Thk

7шт.

15

87547822

PISTON

1шт.

16

87530795

CLUTCH OVERHAUL KIT

Clutch Plates

1шт.

17

11062976

SNAP RING,Int, M100 x 3

1шт.

18

11070376

SNAP RING,M70, Ext

1шт.

19

5162399

BALL BEARING,70mm ID x 100mm OD x 16mm W

1шт.

20

5169098

WASHER,70mm ID x 95mm OD x 1mm Thk

1шт.

21

5171870

HUB

1шт.
