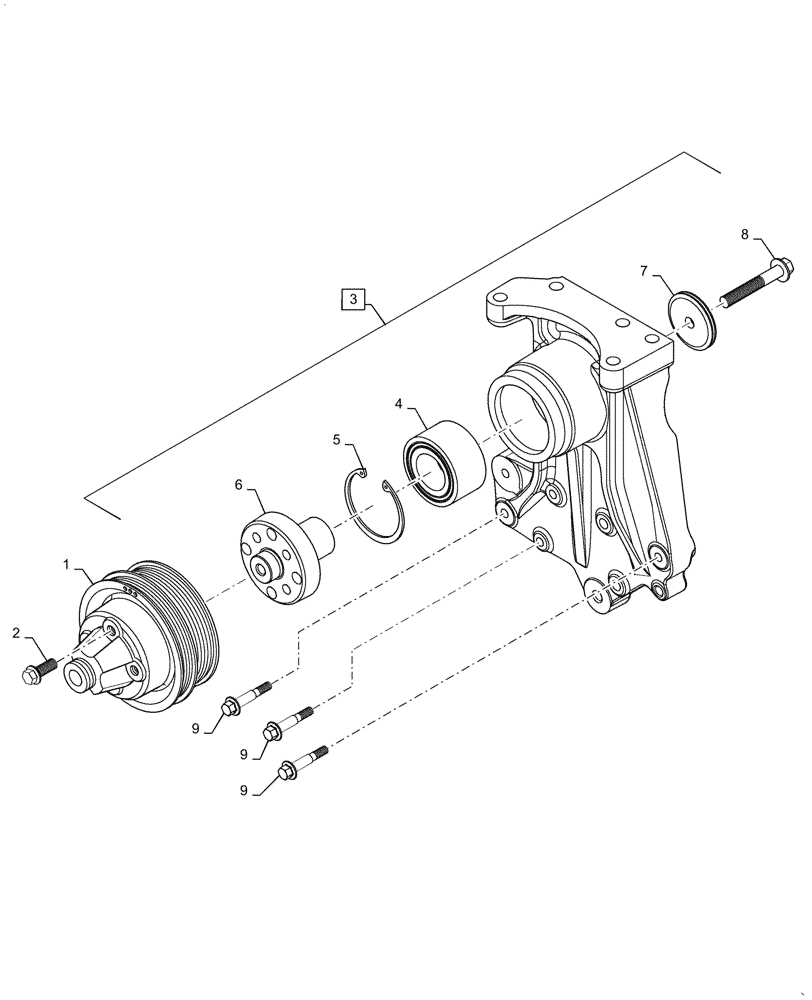

Запчасти Case IH PUMA1804 (10.414.AC[01]) - FAN DRIVE, FA38024 (10) - ENGINE

1

2859229

PULLEY,133mm OD

Fan

1шт.

2

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

4шт.

3

2859248

SUPPORT ASSY.

Fan, Incl 4 - 8

1шт.

4

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

5

4890698

SNAP RING,M64, Int

1шт.

6

4892426

HUB

Fan

1шт.

7

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

Fan Hub

1шт.

8

4893228

BOLT,Flng, M10 x 1.5 x 70mm, Cl 10.9

1шт.

9

4899053

SCREW,Hex Flg, M8 x 45

4шт.

9

4895608

SCREW

2шт.
