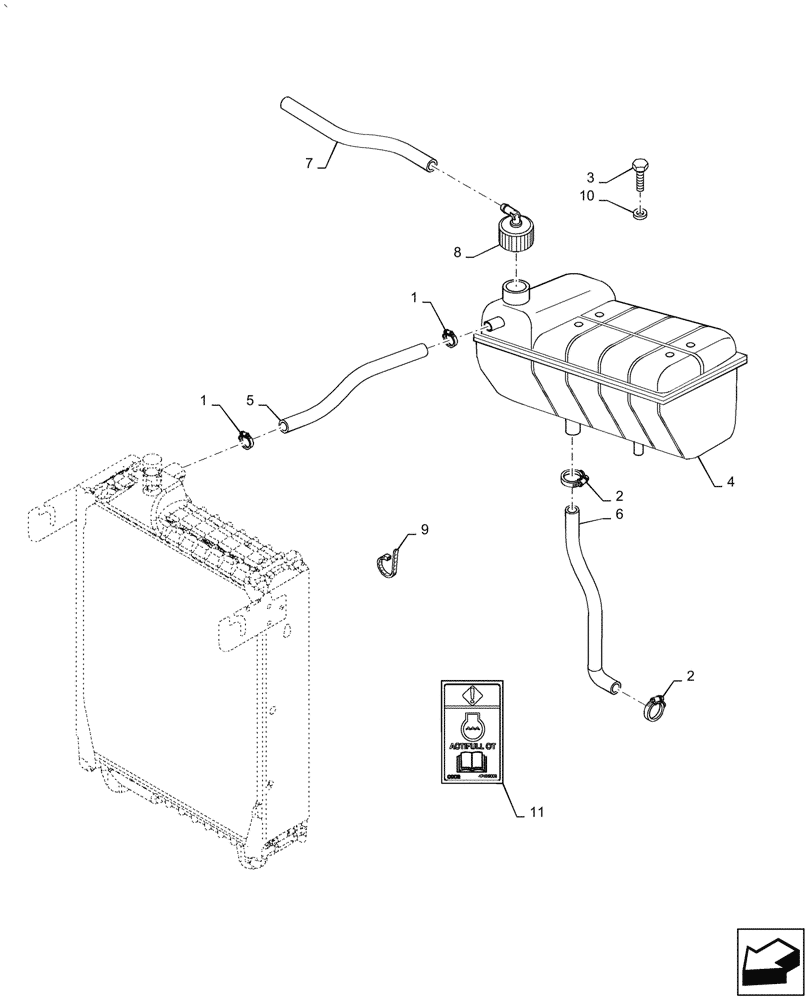

Запчасти Case IH PUMA1804 (10.400.BH[02]) - COOLING, EXPANSION TANK (10) - ENGINE

1

87313783

CLAMP,10mm - 16mm, Worm Gear

Worm Gear

2шт.

2

82039343

HOSE CLAMP,16mm - 27mm

Worm Gear

2шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

4

82019588

RESERVOIR

Bottle - Gas

1шт.

5

84141128

RADIATOR HOSE,9.00 mm ID x 510.00 mm, SAE J20R4 CLASS

Assy Degas Bottle to Rad High

1шт.

6

84130803

FLEXIBLE HOSE,19.50 mm ID x 162.3,419.6, SAE J20R4 Class C

Assy Water Pump to Degas Bottle

1шт.

7

82031702

TUBE,7.62mm ID X 1295mm

Radiator Overflow

1шт.

8

82022744

CAP,Female, Vented, Non-Locking

Degas Bottle

1шт.

9

83933061

STRAP

Cable Tie

2шт.

10

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

11

47757330

DECAL,50mm x 50mm H

OAT Coolant - Actifull OT

1шт.
