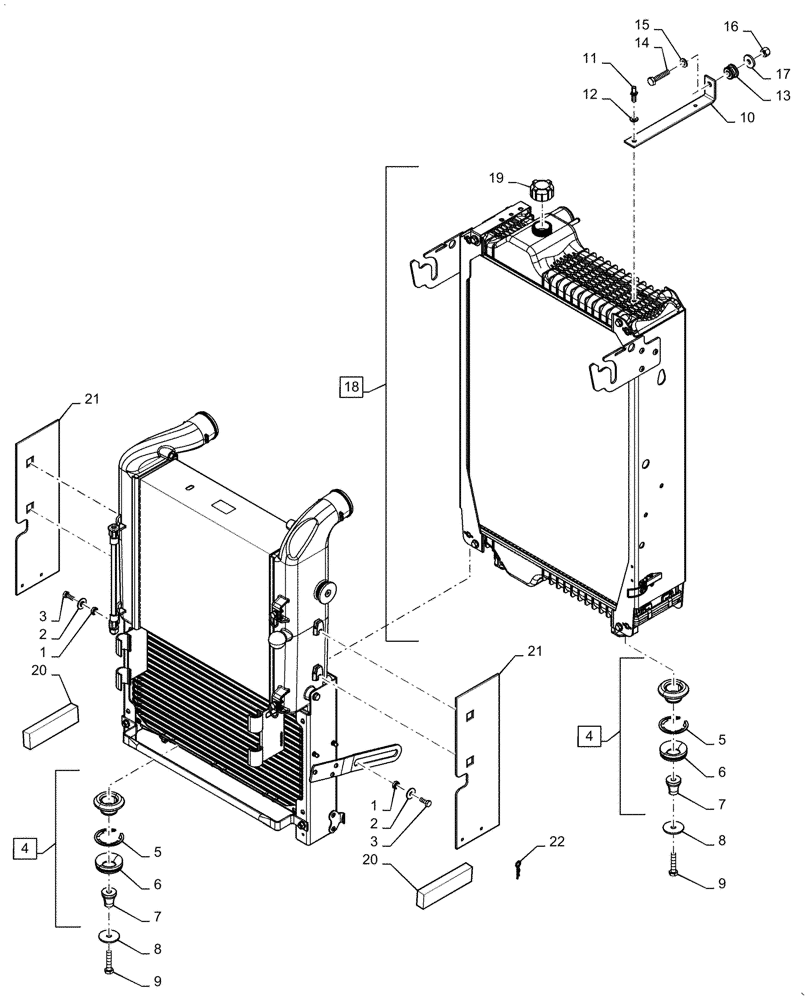

Запчасти Case IH PUMA1804 (10.400.BF[08]) - RADIATOR FRAME AND SUPPORTS (10) - ENGINE

1

87385194

ROLLER BEARING,8mm ID x 16mm OD x 5mm W

Ball Sealed

2шт.

2

87385196

WASHER,8.5mm ID X 25mm OD X 2mm

2шт.

3

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

82023389

ISOLATOR,67mm OD x 35.5mm L

Damper Assy, Incl 5 - 7

2шт.

5

82033528

SNAP RING,55mm ID

Retaining

1шт.

6

82022182

BUSHING,29mm ID x 59mm OD x 15mm L

Pad Reteiner

1шт.

7

82022183

BUSHING,10.2mm ID x 19.8mm OD x 35.5mm L

Conical

1шт.

8

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

9

11343821

BOLT,Hex, M10 x 1.25 x 50, 8.8

2шт.

10

87719159

SUPPORT

Bracket Radiator Tie Bar

1шт.

11

87316808

STUD,M8 x 1.25mm

1шт.

12

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

13

82009429

ISOLATOR

Insulation - Steering Column

1шт.

14

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

1шт.

15

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

16

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

17

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

18

84249164

RADIATOR

Assy 6 Row, Incl 19, 20

1шт.

19

87306788

RADIATOR CAP

1шт.

20

82030145

FOAM INSULATION

Seal Radiator Air Side

2шт.

21

84226373

SEAL

Radiator

2шт.

22

81865839

COTTER PIN

Hair

1шт.
