(10.400.BF[05]) - FRONT SUPPORT COVER AND RADIATOR BAFFLE

Запчасти Case IH PUMA1804 (10.400.BF[05]) - FRONT SUPPORT COVER AND RADIATOR BAFFLE (10) - ENGINE

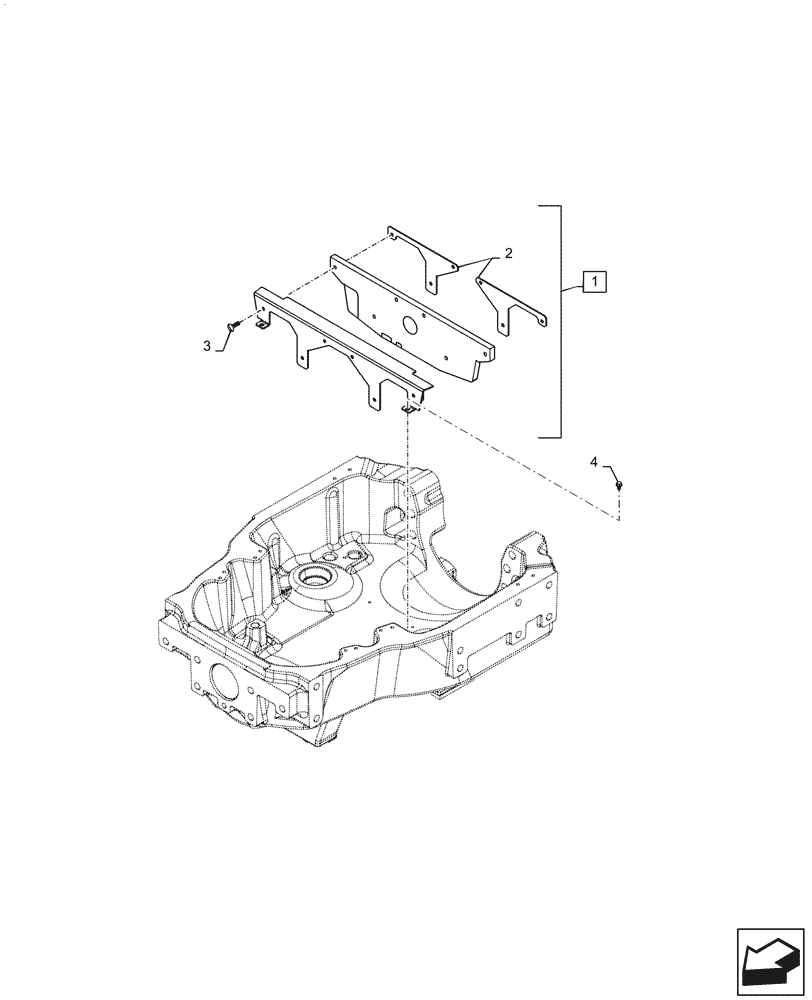

Схема запчастей Case IH PUMA1804 - (10.400.BF[05]) - FRONT SUPPORT COVER AND RADIATOR BAFFLE (10) - ENGINE
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84382862

BAFFLE

Assy Standard/Supersteer Support, Incl 2, 3

1шт.

2

87649703

DEFLECTOR

Baffle Radiator Rear Plate

2шт.

3

87635853

STUD,7.1mm D

Trim - Bulkhead Insulator

6шт.

4

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

Flange

2шт.
