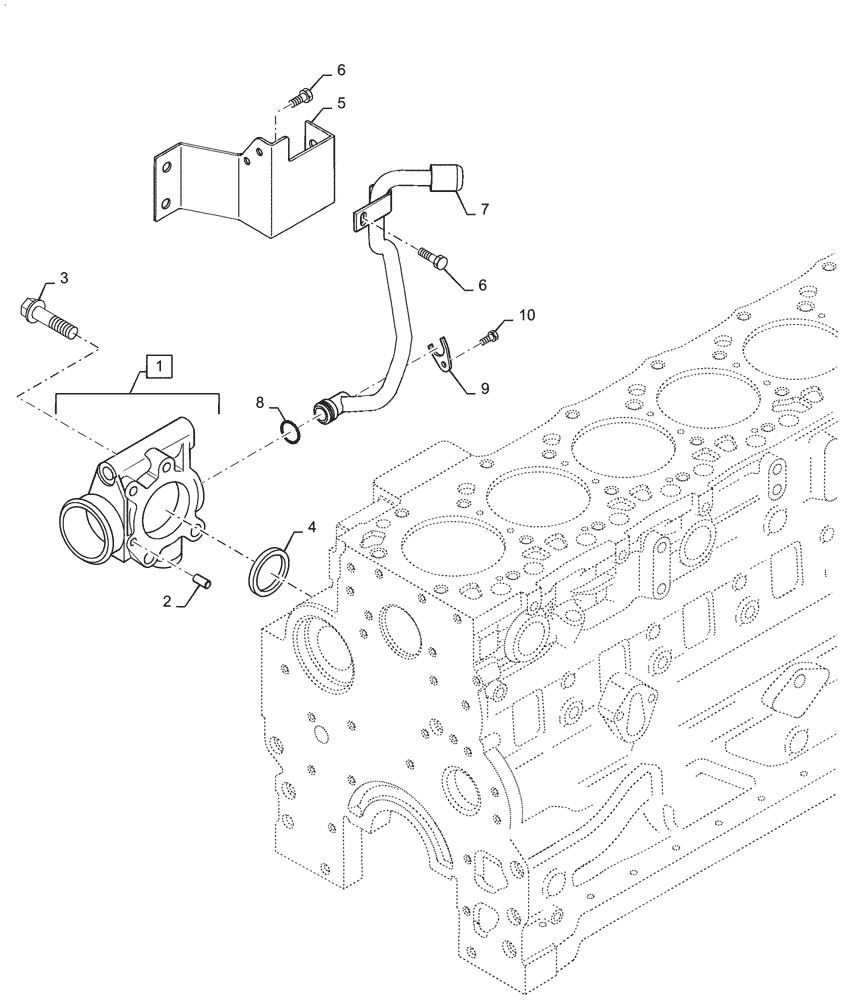

Запчасти Case IH PUMA1804 (10.400.AP[01]) - RADIATOR COOLANT TUBES (10) - ENGINE

1

2859452

SUPPORT

Assy, Incl 2

1шт.

2

2830894

DOWEL,.25" OD x .625" L

Pin

2шт.

3

4895174

SCREW,Flg Hd, M10 x 1.5 x 65

3шт.

4

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

5

2859245

SUPPORT

Bracket Assy, Pipe

1шт.

6

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

4шт.

7

2853999

PIPE ASSY.

Water Connecting

1шт.

8

2853563

O-RING,20.29mm ID x 2.62mm

1шт.

9

2853564

BRACKET

Clip - Retaining

1шт.

10

2854000

SELF-TAP SCREW,Hex, M6 x 16mm

1шт.
