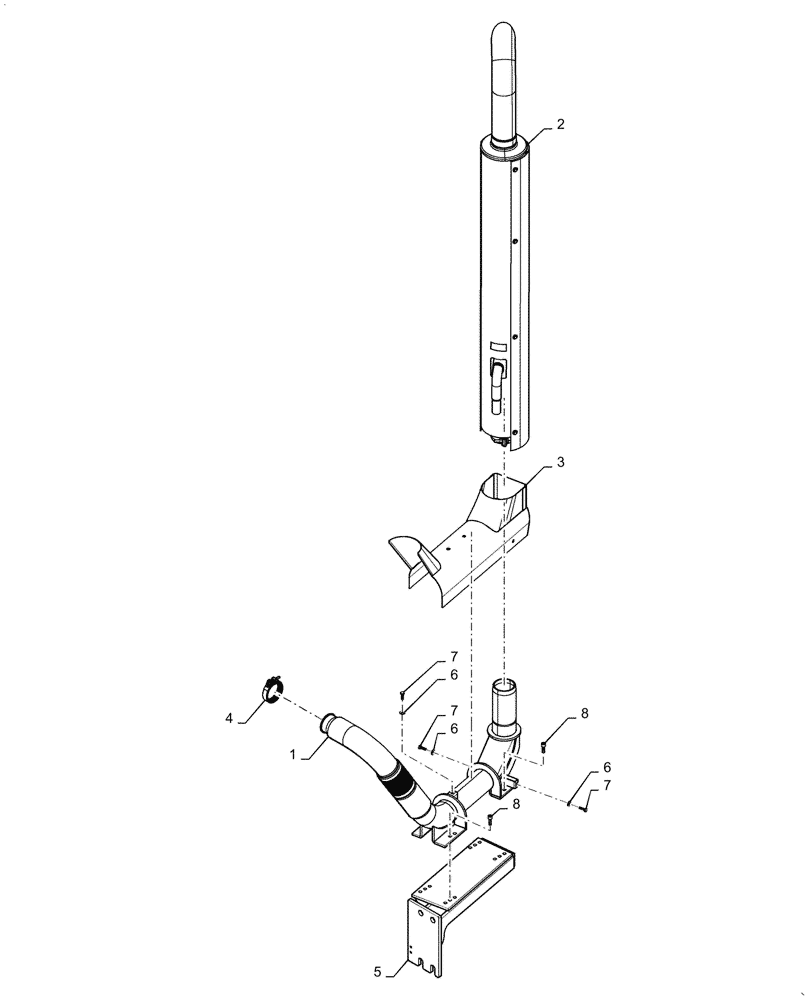

Запчасти Case IH PUMA1804 (10.254.AI[03]) - EXHAUST MUFFLER (10) - ENGINE

1

47634003

EXHAUST SYSTEM PIPE

Assy

1шт.

2

47638094

MUFFLER

Vertical Reinforced

1шт.

3

47641869

SHIELD

Exhaust Pipe

1шт.

4

87524289

CLAMP,81mm

Assembly, Exhaust

1шт.

5

47642790

BRACKET

Assy Exhaust System

1шт.

6

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

8

14420234

SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.
