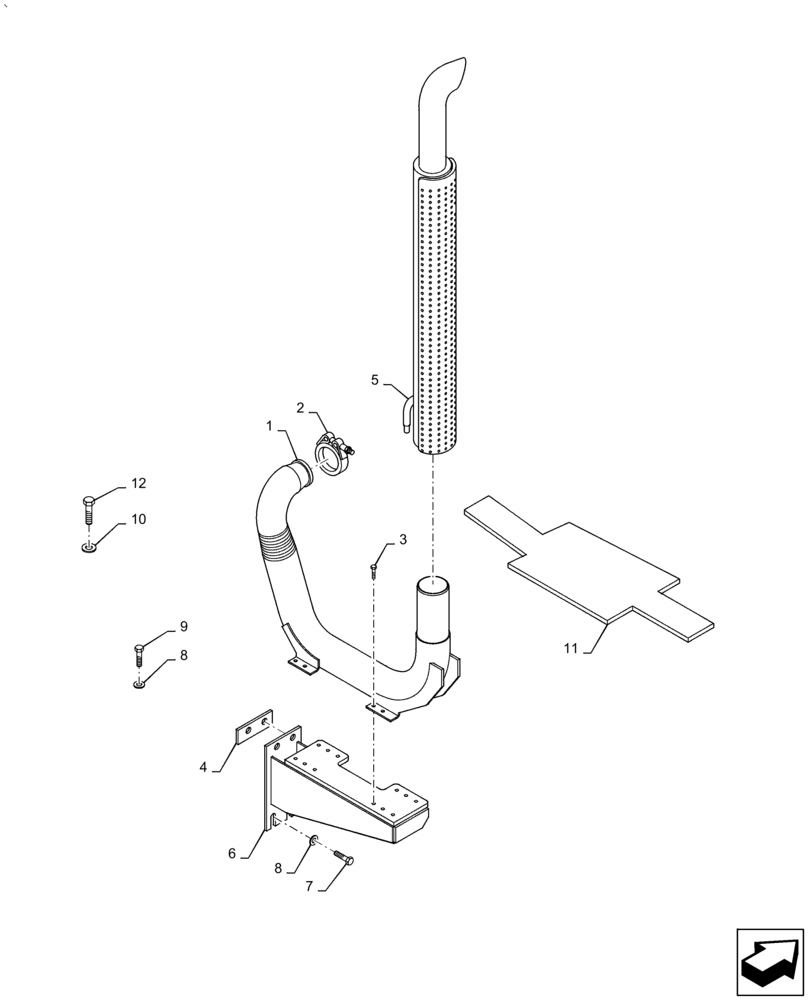

Запчасти Case IH PUMA1804 (10.254.AI[02]) - VAR - 521 - EXHAUST MUFFLER, BLUE POWER VERSION (10) - ENGINE

1

84551482

EXHAUST SYSTEM PIPE

1шт.

2

87524289

CLAMP,81mm

Alternative to P/N 82033948

1шт.

2

82033948

CLAMP

Alternative to P/N 87524289

1шт.

3

14432334

HEX SOC SCREW,M10 x 1.5 x 22mm, Cl 10.9, Full Thd

8шт.

4

87569642

PLATE

1шт.

5

47910603

MUFFLER

1шт.

6

87568617

SUPPORT

1шт.

7

11124874

BOLT,Hex, M20 x 55mm, Cl 12.9

Not present on FPS

4шт.

8

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

Not present on FPS

4шт.

9

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

(Loader Q.ty 4)

5шт.

10

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

5шт.

11

87590157

DEFLECTOR

1шт.

12

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

Loader

1шт.
