Запчасти Case IH PUMA1804 (10.218.AQ[01]) - FUEL INJECTION PUMP, FP38040 (10) - ENGINE

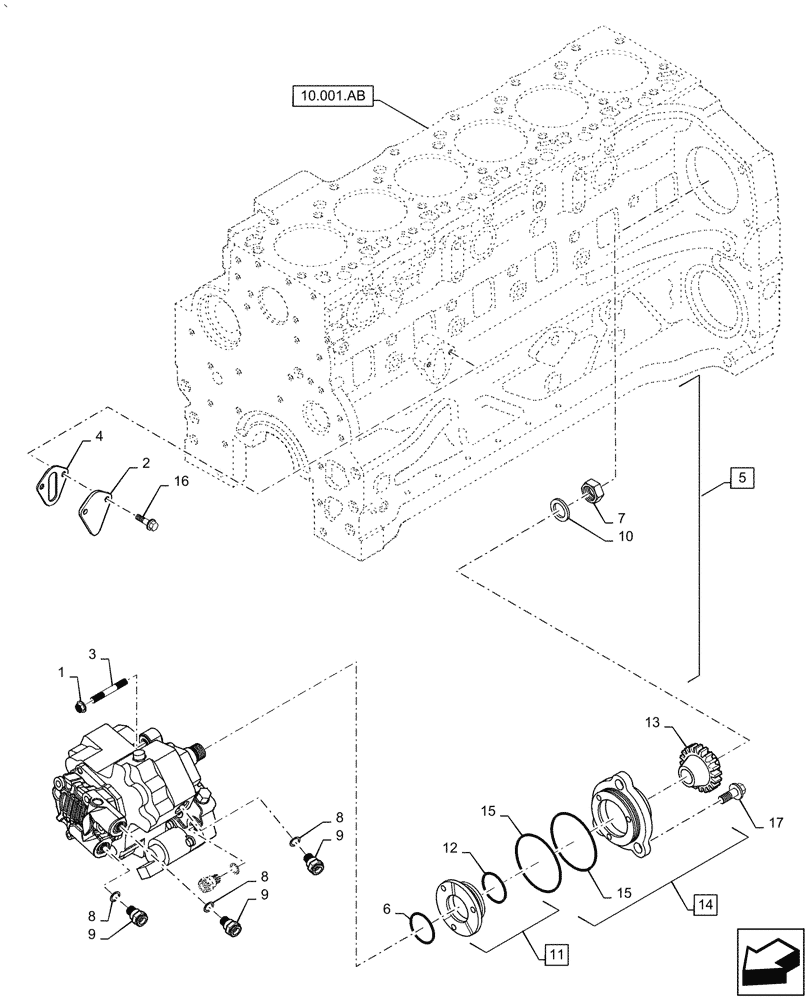

Схема запчастей Case IH PUMA1804 - (10.218.AQ[01]) - FUEL INJECTION PUMP, FP38040 (10) - ENGINE
9
9
11
17
2
8
6
14
12
13
1
8
10.001.ab
4
7
8
15
9
3
10
5
15
16

Артикул

Название

Примечание

Количество

1

4899003

FLANGE NUT,M8 x 1.25

3шт.

2

4896952

COVER

Plate

1шт.

3

4892831

STUD

3шт.

4

4890700

GASKET,1.21mm Thk

Cover Plate

1шт.

5

84385110

FUEL INJECTION PUMP

Injection Assy, Incl 6 - 10

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

1шт.

8

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

4шт.

10

4890635

SPRING WASHER

1шт.

11

2830564

SPACER

Adapter Assy - Fuel Pump, Incl 12

1шт.

12

4897109

O-RING

1шт.

13

4896138

DRIVEN GEAR,27T

Fuel Pump

1шт.

14

2830598

BEARING COVER

Adapter Assy - Fuel Pump, Incl 15

1шт.

15

4897111

O-RING,0.139" Thk x 4.719" ID

2шт.

16

4899146

SCREW,Hex Flg, M8 x 1.25 x 20

2шт.

17

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

3шт.

Выбрано товаров: 17
