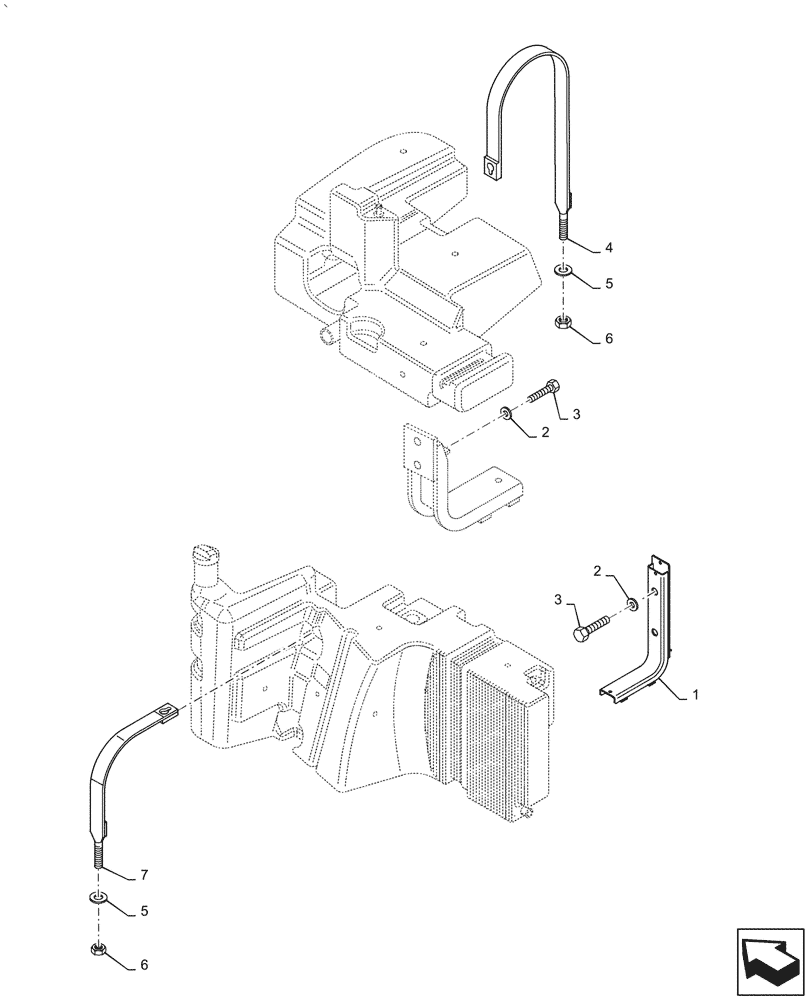

Запчасти Case IH PUMA1804 (10.216.AI[04]) - SUPPORT, MAIN FUEL TANK (10) - ENGINE

1

87519071

HOLDER

Support Assy - Fuel Tank Main Rear

1шт.

2

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

3

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

4

84259323

SECURING STRAP

Assy Main Tank Rear

1шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

7

84259328

SECURING STRAP

Assy Main Tank

1шт.
