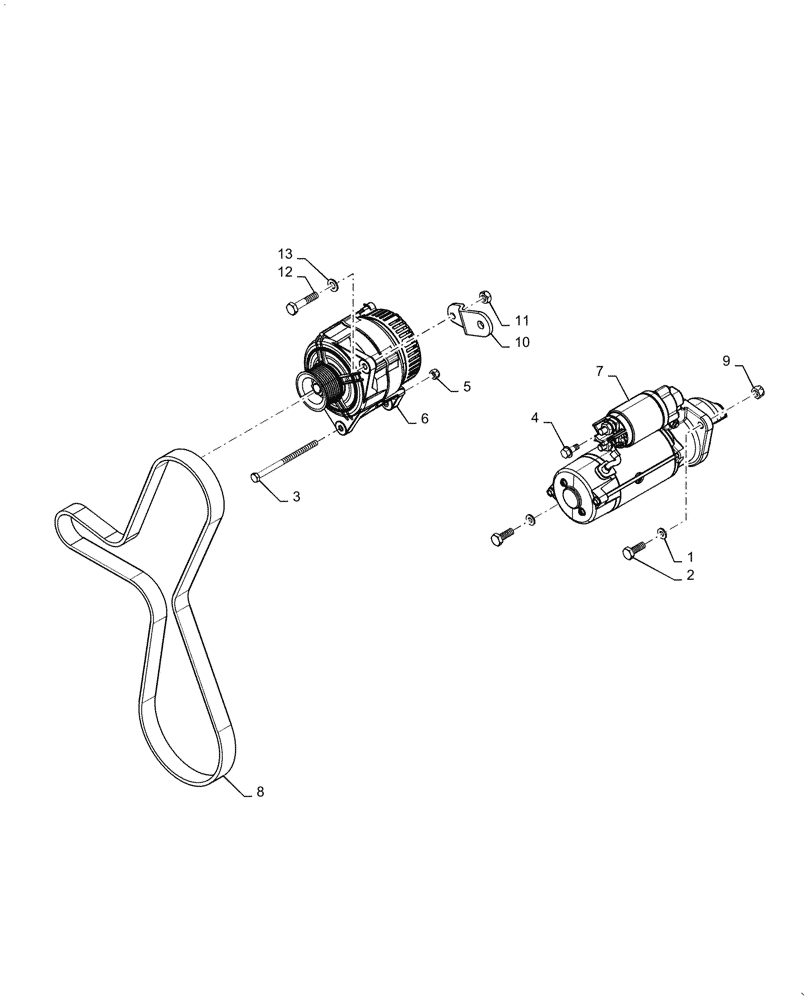

Запчасти Case IH PUMA1804 (55.301.AA[03]) - ALTERNATOR, 120A (55) - ELECTRICAL SYSTEMS

1

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

2

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

3

16202224

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

1шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Flange

1шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

6

84141452

ALTERNATOR,12V, 120A, W/ Pulley

120A

1шт.

7

84151331

STARTER MOTOR,12V, 4.2kW

1шт.

8

84229205

V-BELT,28.28 mm W x 1682.50 mm L, 8 Ribs

1шт.

9

87516430

NUT,Round, M5

Protection Cap

1шт.

10

2858061

BRACKET

Alternator

1шт.

11

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

12

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

1шт.

13

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
