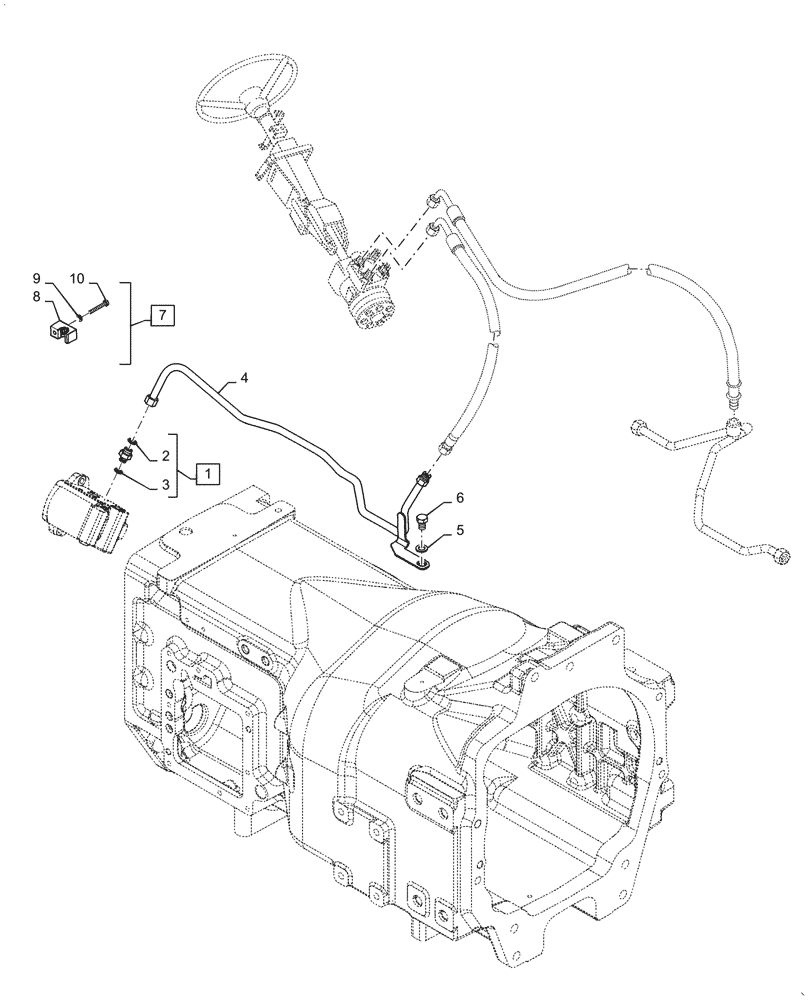

Запчасти Case IH PUMA1804 (41.200.AO[03]) - HYDRAULIC STEERING LINE (41) - STEERING

1

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

Incl 2, 3

1шт.

2

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

84469890

HYD TUBE

Pipe Supply Steering

1шт.

5

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

Plain

1шт.

6

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

1шт.

7

84469888

BRACKET

Assy

1шт.

8

87326640

CLAMP,16mm ID

Bracket

1шт.

9

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

10

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.
