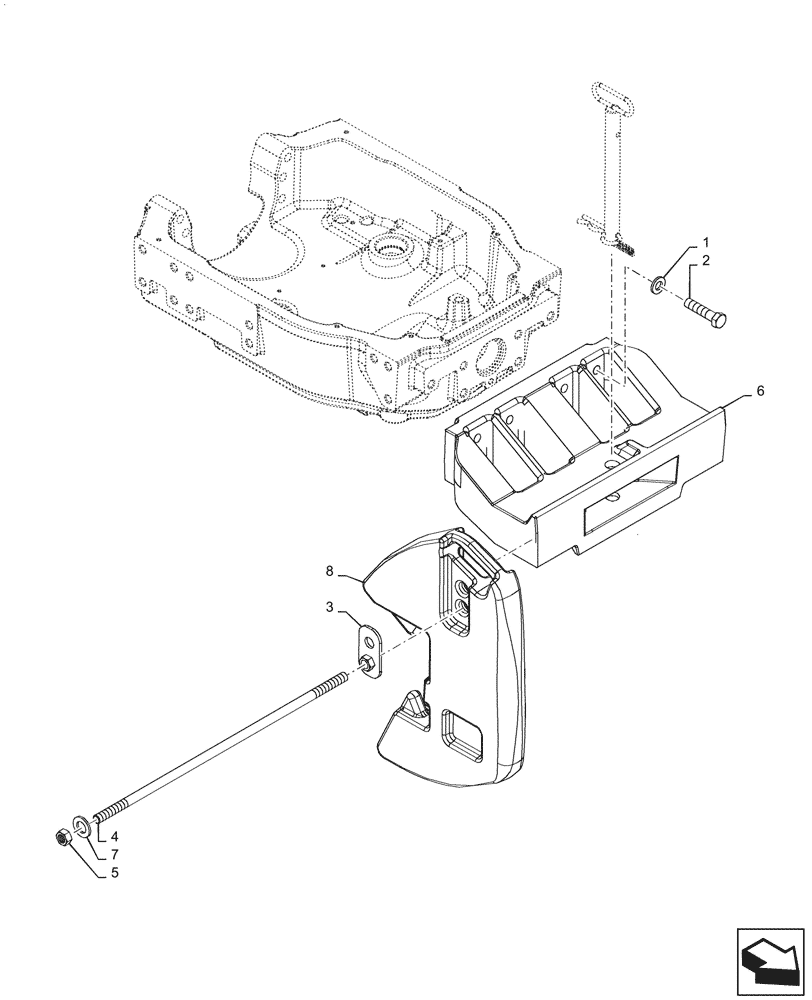

Запчасти Case IH PUMA1804 (39.140.AF[04]) - FRONT WEIGHT (39) - FRAMES AND BALLASTING

1

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

2

16050821

BOLT,Hex, M20 x 90mm, Cl 8.8

6шт.

3

44995007

CLAMP,Grey

Assy Front Weight Grey

1шт.

4

44995059

ROD,M16 x 2 x 950.00mm, ZND

1шт.

5

82011968

NUT,Hex, M16, 2mm Pitch, 13.00mm High, ZND

3шт.

6

82031491

WEIGHT CARRIER

Ptd Front

1шт.

7

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

1шт.

8

86988727

WEIGHT,45Kg

Front

16шт.
