Запчасти Case IH PUMA1804 (37.120.AO[01]) - HITCH, LOWER LINK, LH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

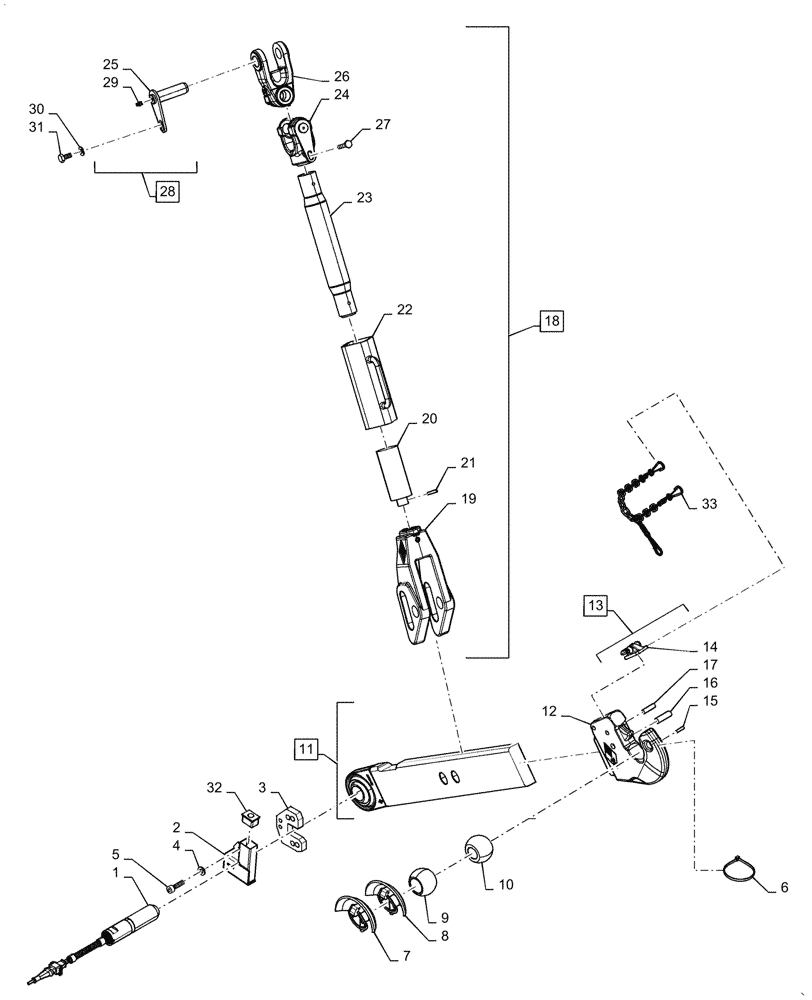

Схема запчастей Case IH PUMA1804 - (37.120.AO[01]) - HITCH, LOWER LINK, LH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
11
24
30
6
16
7
26
4
19
32
8
3
10
23
20
1
18
17
31
27
25
13
29
22
33
28
21
15
12
5
2
9
14

Артикул

Название

Примечание

Количество

1

87661289

SENSOR

Pin Draft

1шт.

2

87586750

SHIELD

LH

1шт.

3

5191331

PLATE

1шт.

4

47130824

LOCK WASHER,Nordlock, 10.70mm ID x 21.00mm OD x 2.50mm

2шт.

5

47134668

HEX SOC SCREW,M10 x 1.25 x 35mm

2шт.

6

14560287

CABLE TIE,207.00mm L

1шт.

7

5130779

ECCENTRIC,11mm OD, Shaft Diameter 29.00mm

Pin Snap Ring - Cat.2

1шт.

8

5130780

ECCENTRIC,15.5mm OD, Shaft Diameter 37.00mm

Pin Sanp Ring - Cat.3

1шт.

9

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

Ball Joint

1шт.

10

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

Ball Joint -Cat.2

1шт.

11

87377617

LOWER LINK

LH Hook End (Walterscheid), Incl 12

1шт.

12

87315107

HOOK

Cat.3

1шт.

13

84162485

REPAIR KIT

Hook Ws Cat.3, Incl 14 - 17

1шт.

14

86017137

KIT

Latch

1шт.

15

86017081

PIN,6mm OD x 32mm L

Sp Slot

1шт.

16

86017083

PIN,13mm OD x 36mm L

Sp Slot

1шт.

17

86017235

PIN,10mm OD x 36mm L

Sp Slot

1шт.

18

87377623

LIFT LINK

LH Mech (Walterscheid), Incl 19 - 27, 30

1шт.

19

87390512

YOKE

Gabel

1шт.

20

87390515

THREADED ROD,M33 x 3

1шт.

21

14607471

LOCK PIN,M8 x 50, Slotted

Slotted Spring

1шт.

22

5198072

HANDLE

1шт.

23

47125893

TUBE,M30 x 3

Adjusting

1шт.

24

87655880

TIE-ROD

1шт.

25

47130640

PIN,25mm OD x 92mm L

Tie Rod Upper

2шт.

26

47130648

YOKE,28mm D x 25mm D

Upper Fork Lift Link

1шт.

27

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

28

47130642

PIN,25mm OD x 92mm L

Tie Rod Complete With Grease Fitting, Incl 25, 29

1шт.

29

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

Fitting 1/4 - 28 Taper

1шт.

30

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

31

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

With Adesive Patch

1шт.

32

47374761

GROMMET,14mm ID, Black

Bushing Rubber

1шт.

33

5116063

ROPE,4500mm L

End String - C.B.M

1шт.

Выбрано товаров: 33
