(35.204.BE[15]) - REAR REMOTE CONTROL VALVE, COMPONENTS

Запчасти Case IH PUMA1804 (35.204.BE[15]) - REAR REMOTE CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

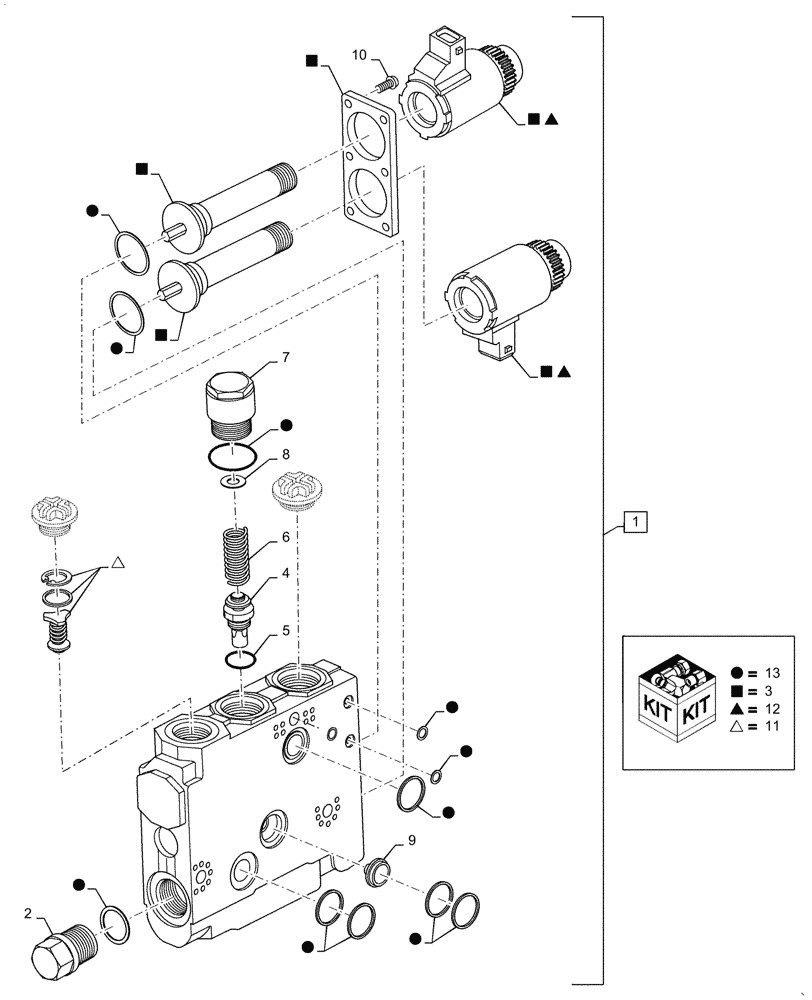

Схема запчастей Case IH PUMA1804 - (35.204.BE[15]) - REAR REMOTE CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
13
3
13
7
12
2
10
12
3
13
4
5
3
6
12
11
13
13
12
13
11
13
11
13
13
13
3
9
3
13
8
3
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84175671

VALVE SECTION

Incl 2 - 15

1шт.

2

87531487

PLUG

Set Screw

1шт.

3

5190768

COIL ASSY.

Solenoid

2шт.

4

47129415

INSERT

Set Not Return Valve

1шт.

5

87531495

O-RING,12.00mm ID x 1.75mm

Set

1шт.

6

47129411

SPRING

Set

1шт.

7

47129410

PLUG,Hex, 29.2mm OD

Set

1шт.

8

47129406

SHIM,0.30mm T

Set

1шт.

8

47129407

SHIM,0.40mm T

Set

1шт.

8

47129416

SHIM,0.80mm T

Set

1шт.

9

84127100

SHUT-OFF VALVE

1шт.

10

47129409

SET SCREW,Oval Head

6шт.

11

84232107

REPAIR KIT

1шт.

12

84270220

SOLENOID,3.35A

Set

1шт.

13

84312718

SEAL KIT

1шт.
