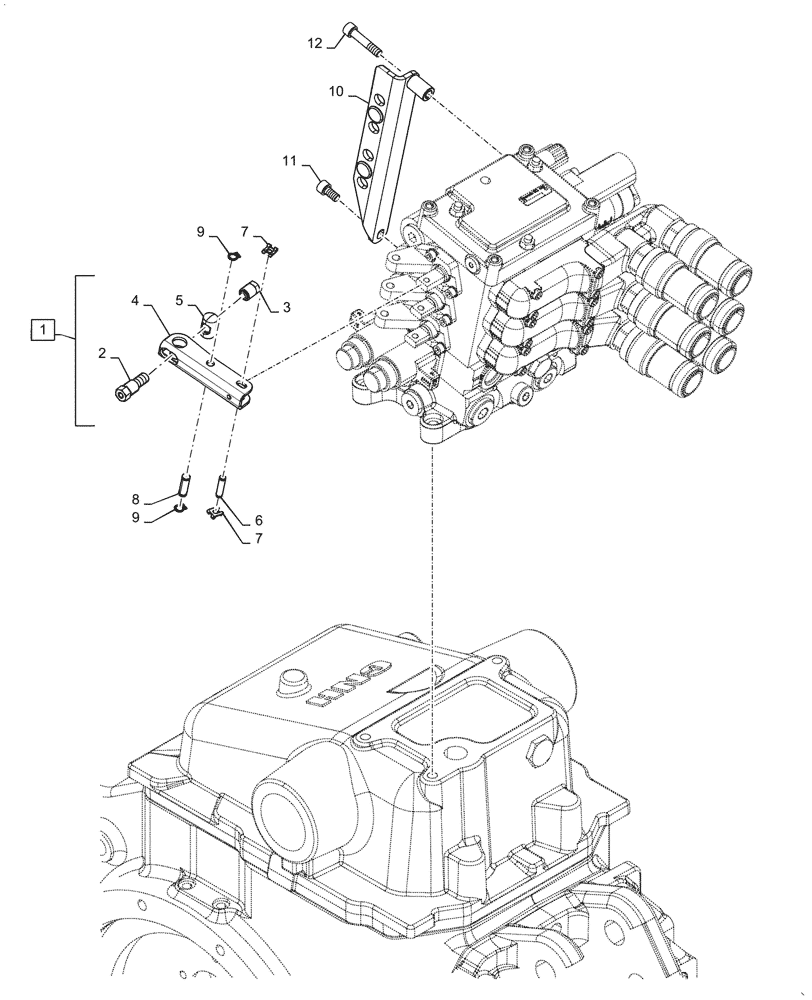

Запчасти Case IH PUMA1804 (35.204.BE[12]) - REAR REMOTE CONTROL VALVE, LEVER (35) - HYDRAULIC SYSTEMS

1

87358094

LEVER

Control, Incl 2 - 5

3шт.

2

NSS

NOT SOLD SEPARAT

Cable Retaining, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Lever Bosch Remotes, Incl in 1

1шт.

5

5192622

HYDRAULIC CYLINDER,10mm ID

Barrel

1шт.

6

5193177

PIN,6mm OD x 29.48mm L

Control Lever Bosch Remote

3шт.

7

11063971

SPRING CLIP,M6

6шт.

8

5113008

PIN,8mm OD x 26mm L

Joint Lever

3шт.

9

11065676

SNAP RING,M8, Ext

6шт.

10

84486547

BRACKET

1шт.

11

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

12

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.
