(35.204.BB[02]) - QUICK COUPLER, COMPONENTS

Запчасти Case IH PUMA1804 (35.204.BB[02]) - QUICK COUPLER, COMPONENTS (35) - HYDRAULIC SYSTEMS

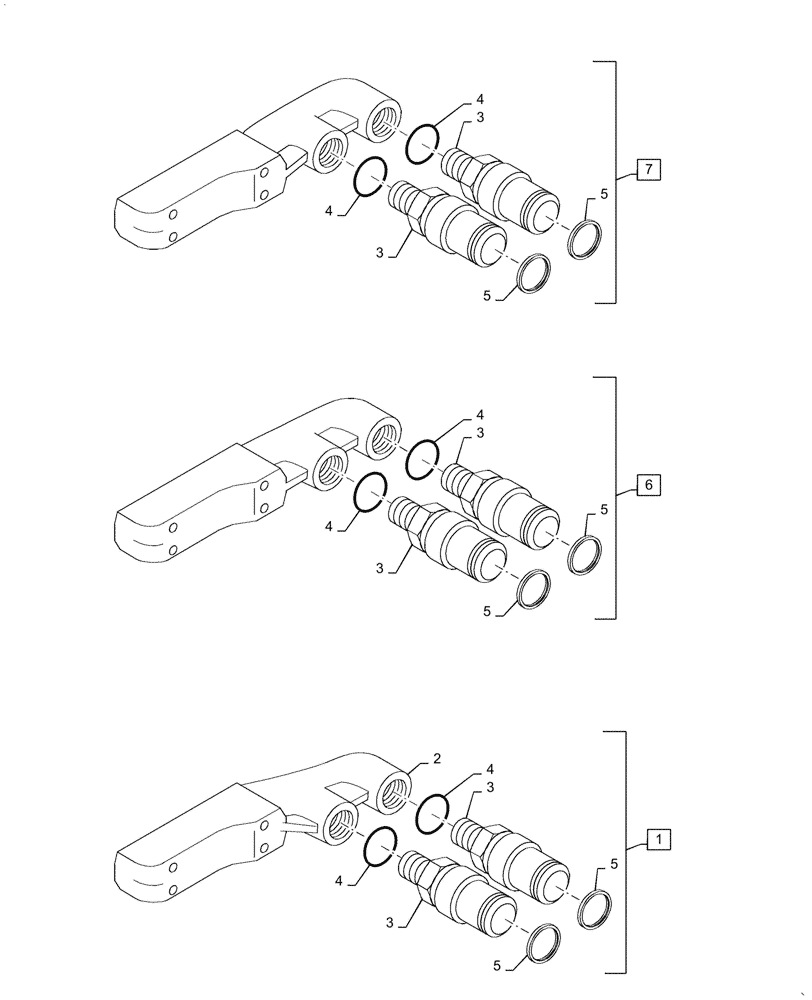

Схема запчастей Case IH PUMA1804 - (35.204.BB[02]) - QUICK COUPLER, COMPONENTS (35) - HYDRAULIC SYSTEMS
5
7
6
3
2
4
3
5
5
3
5
3
5
3
5
4
1
4
4
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87381958

QUICK MALE COUPLING

Manifold Group - 1, Incl 2 - 5

1шт.

2

47123058

HOLDER

Support Quick Couplers - 1

1шт.

3

47370116

COUPLING

Diagnostic

2шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

87382012

SEAL KIT

1шт.

6

87381963

QUICK MALE COUPLING

Manifold Group - 2, Incl 3 - 5

1шт.

7

87381964

QUICK MALE COUPLING

Manifold Group - 3, Incl 3 - 5

1шт.
