(35.106.AQ[01]) - BRACKET FOR SUPPORT PROTECTION, HYDRAULIC PUMP

Запчасти Case IH PUMA1804 (35.106.AQ[01]) - BRACKET FOR SUPPORT PROTECTION, HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

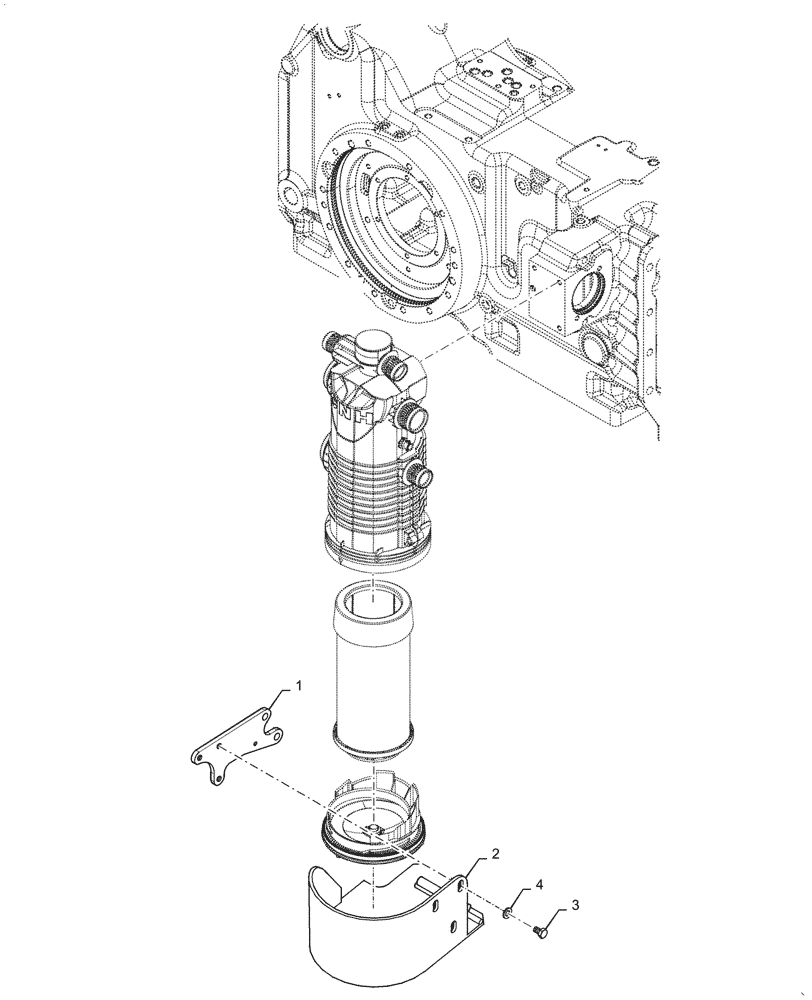

Схема запчастей Case IH PUMA1804 - (35.106.AQ[01]) - BRACKET FOR SUPPORT PROTECTION, HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84332042

SUPPORT

1шт.

2

84416093

COVER

1шт.

3

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

4

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.
