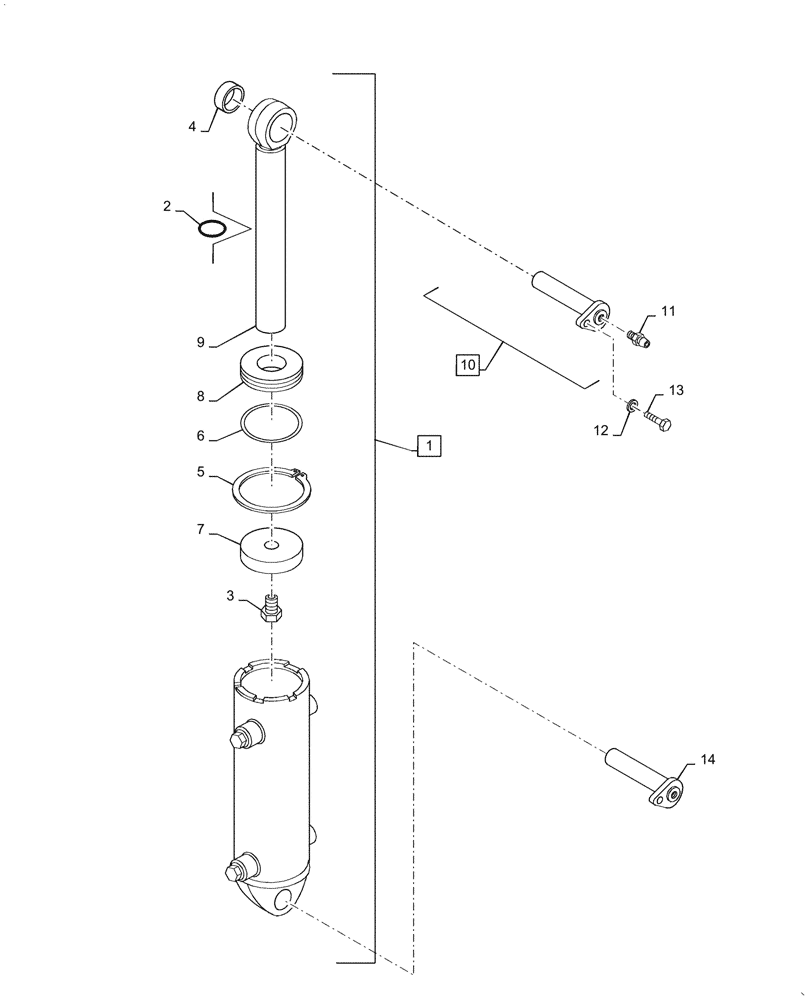

Запчасти Case IH PUMA1804 (35.100.BI[03]) - HYDRAULIC LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

87392350

LIFT CYLINDER,Double Acting, 40mm Rod, 177mm Stroke

Assy, Incl 2 - 9

2шт.

2

87392361

SEAL KIT

1шт.

3

87385633

BOLT

1шт.

4

5198652

BUSHING

1шт.

5

47137400

RING

Seeger

1шт.

6

47137401

SNAP RING

Retaining

1шт.

7

87392365

PISTON

1шт.

8

87392367

CYLINDER HEAD

1шт.

9

87385638

PISTON ROD

1шт.

10

5190967

PIN,34.7mm OD x 96mm L

Assy Complete with Grease Nipple, Incl 11

2шт.

11

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

12

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

13

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

With Adesive Patch

4шт.

14

47130245

PIN,34.7mm OD x 224mm L

Cylinder Lift Lower

2шт.
