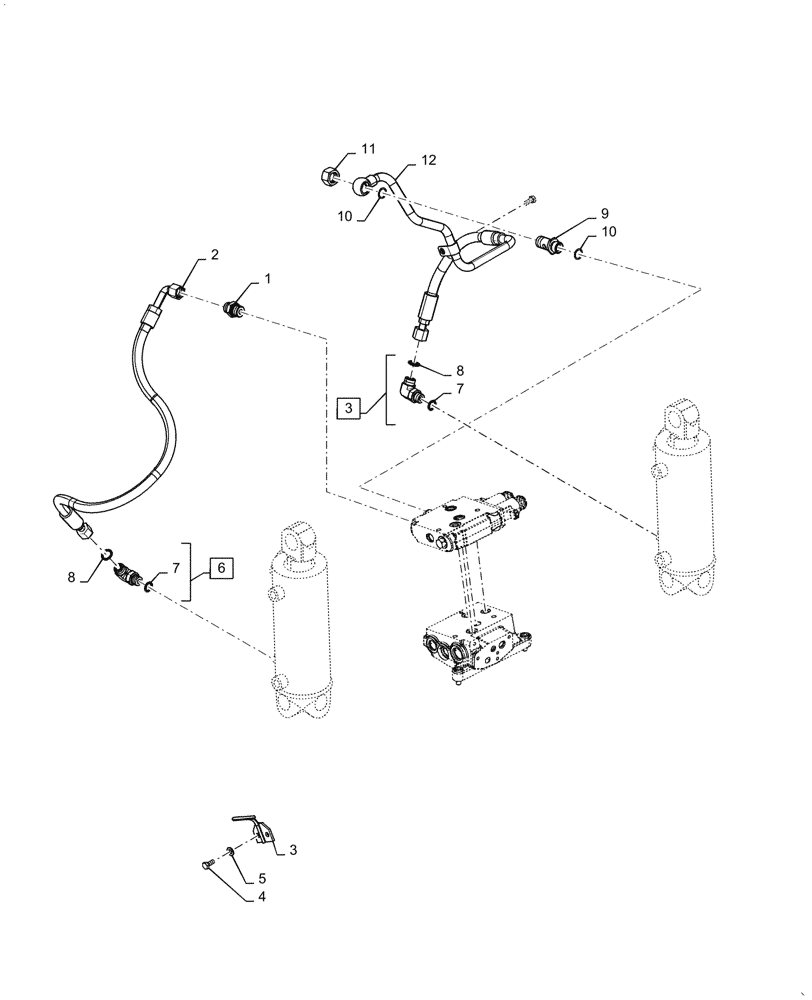

Запчасти Case IH PUMA1804 (35.100.AR[05]) - LIFTER LINES - LIFTER CYLINDERS PIPES (35) - HYDRAULIC SYSTEMS

1

5196305

UNION

Connector

1шт.

2

87519167

HOSE,9.5mm ID x 880mm L, SAE 100R16

Hydraulic RH Cylinder

1шт.

3

87531649

BRACKET

1шт.

4

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

5

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Incl 7, 8

2шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

9

47133105

BANJO BOLT,M22 x 1.50 x 58mm, R50

1шт.

10

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

11

47133106

PLUG,Hex, M22 x 1.5 x 13mm L

For Banjo

1шт.

12

84242914

TUBE,16 mm OD

Pipe Pressure

1шт.
