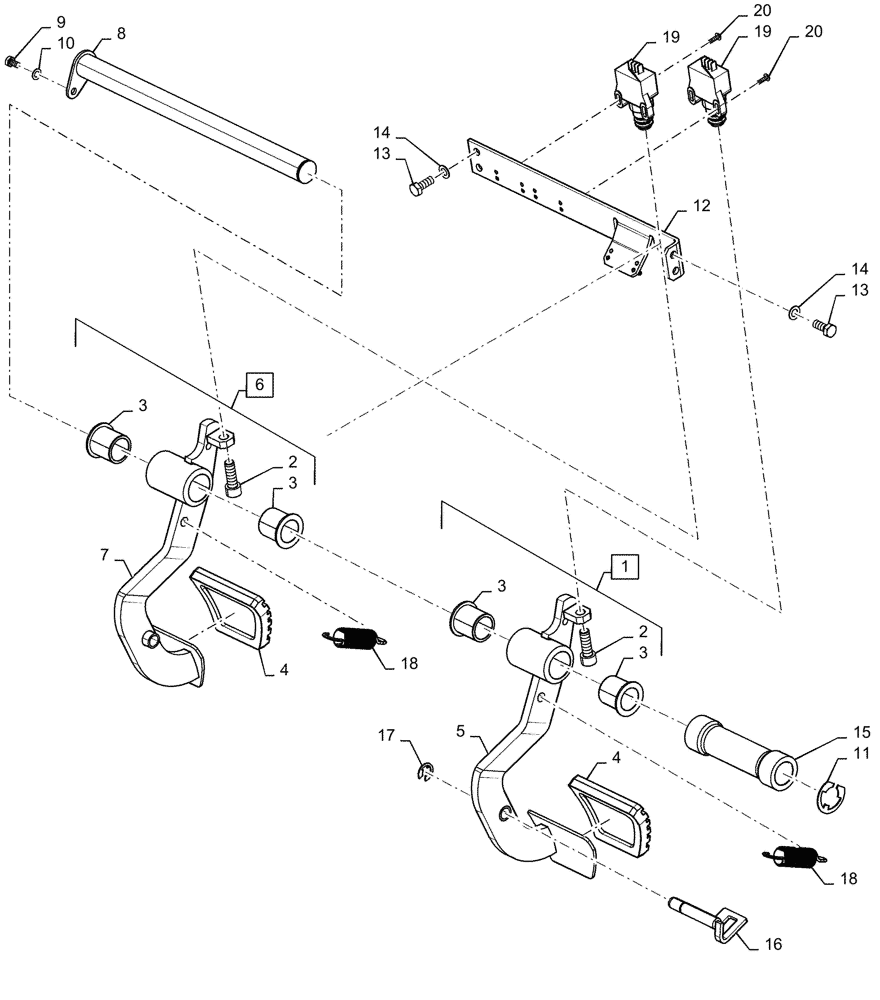

Запчасти Case IH PUMA1804 (33.202.BN[02]) - BRAKE PEDAL (33) - BRAKES & CONTROLS

1

87547097

PEDAL

Assy LH Brake W/ Bush, Incl 2 - 5

1шт.

2

14307521

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

3

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

4шт.

4

82025747

RUBBER PEDAL PAD

2шт.

5

NSS

NOT SOLD SEPARAT

Pedal Assy LH Brake Pntd

1шт.

6

87547098

PEDAL

Assy RH Brake W/ Bush, Incl 2 - 4, 7

1шт.

7

NSS

NOT SOLD SEPARAT

Pedal Assy RH Brake Ptnd

1шт.

8

82022428

SHAFT,20mm ID x 25mm OD x 348mm L

Assy

1шт.

9

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

10

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

1шт.

11

83937363

SNAP RING

1шт.

12

84183613

SUPPORT

Bracket Assy Switch Plate Brake

1шт.

13

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Bolt

3шт.

14

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

3шт.

15

87310426

SPACER,32mm ID x 38mm OD x 134mm L

1шт.

16

84209162

PIN,11.965mm OD x 70mm L

Assy Lock Brake Pedal

1шт.

17

11088171

SNAP RING,M11

E

1шт.

18

5153180

SPRING,21mm OD x 84mm L

Extension Brake Pedal

2шт.

19

82026949

PUSH BUTTON SWITCH

Assy Brake

2шт.

20

83963569

CAPTIVE WASHER SCREW,Pan Hd, M4 x 12mm, Cl 4.8

4шт.
