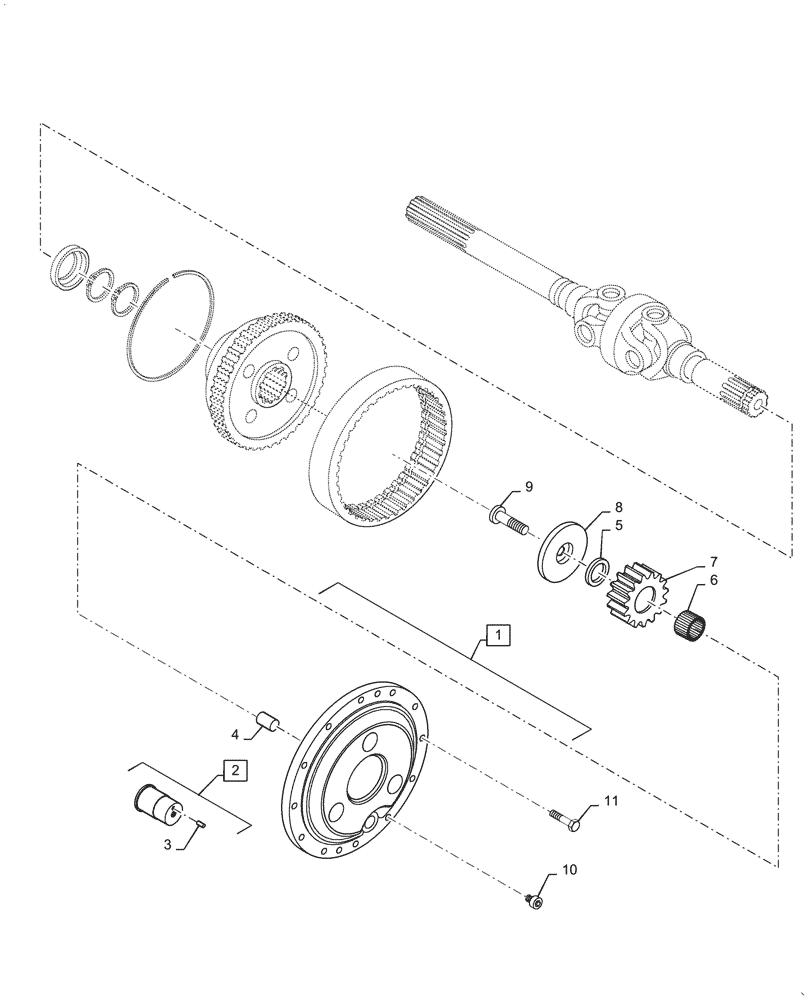

Запчасти Case IH PUMA1804 (25.108.AB[01]) - FRONT AXLE, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM

1

87473022

PLANET CARRIER

Support Assy, Incl 2 - 4

1шт.

2

87471121

PIN

Assy, Incl 3

3шт.

3

10333210

DOWEL,M4 x 10.00mm

Pin Parallel

1шт.

4

87604978

BUSHING

1шт.

5

87330360

THRUST WASHER

6шт.

6

87330366

ROLLER BEARING,41.4mm ID x 51.4mm OD x 35.5mm W

Needle

3шт.

7

87330345

IDLER PINION

Planet Epicyclic Final Drive

3шт.

8

87681967

SPACER

Final Drive

3шт.

9

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

3шт.

10

14326211

PLUG,M22 x 1.50, R50, ZND

Pipe Magnetic

2шт.

11

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.
