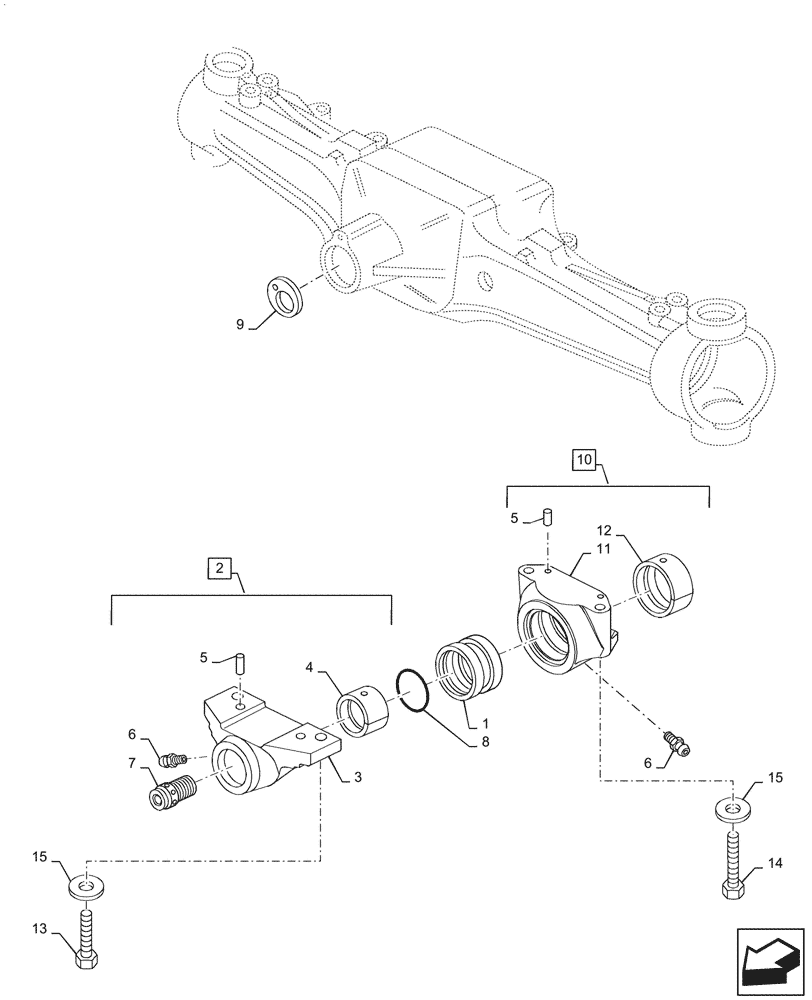

Запчасти Case IH PUMA1804 (25.100.AI[01]) - AXLE SUPPORT, ARTICULATION (25) - FRONT AXLE SYSTEM

1

5188607

SEAL,115.5mm ID x 130mm OD x 7.5mm Thk

For Rear Support Axle Hinge

2шт.

1

5140887

SEAL,115.5mm ID x 130mm OD x 7.5mm Thk

For Rear Support Axle Hinge

1шт.

1

5188606

GASKET,7.5mm Thk, 130mm OD

Seal for Rear Support Axle Hinge

1шт.

2

87311589

TRUNNION

Assy Front Axle Assy, Incl 3 - 7

1шт.

3

87311590

TRUNNION

Front

1шт.

4

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

1шт.

5

10837710

DOWEL,M10 x 25

Pin

4шт.

6

13407211

LUBE NIPPLE,M10 x 1

Fitting

2шт.

7

13411117

VALVE PRESSURE RELIE,M10, Black

Ball Type Grease

1шт.

8

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

9

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

10

87311603

TRUNNION

Complete Assy, Incl 5, 6, 11, 12

1шт.

11

87311604

TRUNNION

Rear

1шт.

12

5140589

BUSHING,115.64mm ID x 120.19mm OD x 52mm L

1шт.

13

15222234

BOLT,Hex, M18 x 70mm, Cl 10.9, Full Thd

2шт.

14

15223534

BOLT,Hex, M18 x 140mm, Cl 10.9, Full Thd

2шт.

15

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.
