Запчасти Case IH PUMA1804 (25.100.AD[01]) - FRONT AXLE HOUSING (25) - FRONT AXLE SYSTEM

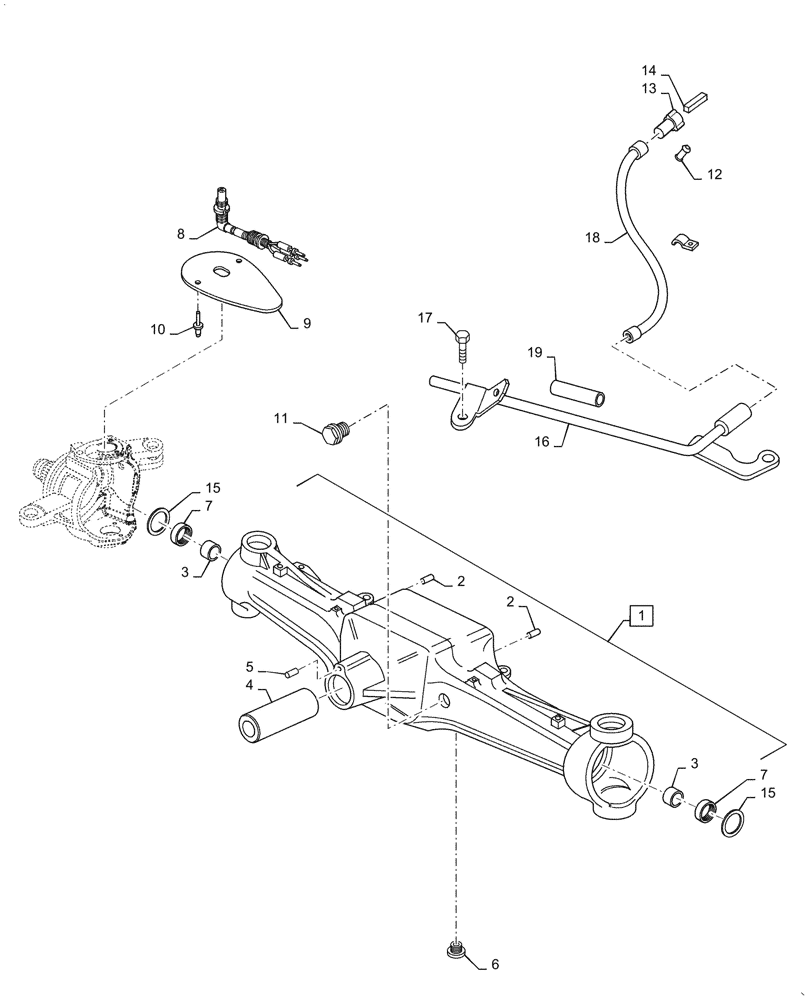

Схема запчастей Case IH PUMA1804 - (25.100.AD[01]) - FRONT AXLE HOUSING (25) - FRONT AXLE SYSTEM
18
15
3
6
1
16
5
12
13
7
17
11
3
10
7
14
2
9
19
4
15
8
2

Артикул

Название

Примечание

Количество

1

87633677

AXLE HOUSING

Assy Front, Incl 2 - 5

1шт.

2

5174376

DOWEL,M16 x 30

Pin Location Axle Casing

2шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

Bush

2шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

4966244

PIN,5mm OD x 15mm L

Straight

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

Pipe Magnetic

1шт.

7

87349670

SEAL,42mm ID x 62mm OD x 23mm Thk

2шт.

8

87627623

ELEC CONNECTOR,Male

Wire Assy Steering Sensor

1шт.

9

87315098

SHIELD

Protection Plate

1шт.

10

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

Pop

2шт.

11

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

Pipe

1шт.

12

82918419

PLUG

Wire Connector

1шт.

13

82918426

ELEC CONNECTOR,Female

Sleeve Assy - Wire Female

1шт.

14

82918451

SPACER

Wire Connector

1шт.

15

87598115

SPACER

2шт.

16

87588344

TUBE,12.00mm OD x 380.40, 49.00mm

Pipe for Protection Male Connector

1шт.

17

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

18

84472045

FLEXIBLE SHEATH

Shield Wire

1шт.

19

87619627

HOSE PROTECTION

Tube Thermoreduction

1шт.

Выбрано товаров: 19
