(23.314.AB[02]) - DRIVE SHAFT, SHIELD

Запчасти Case IH PUMA1804 (23.314.AB[02]) - DRIVE SHAFT, SHIELD (23) - FOUR WHEEL DRIVE SYSTEM

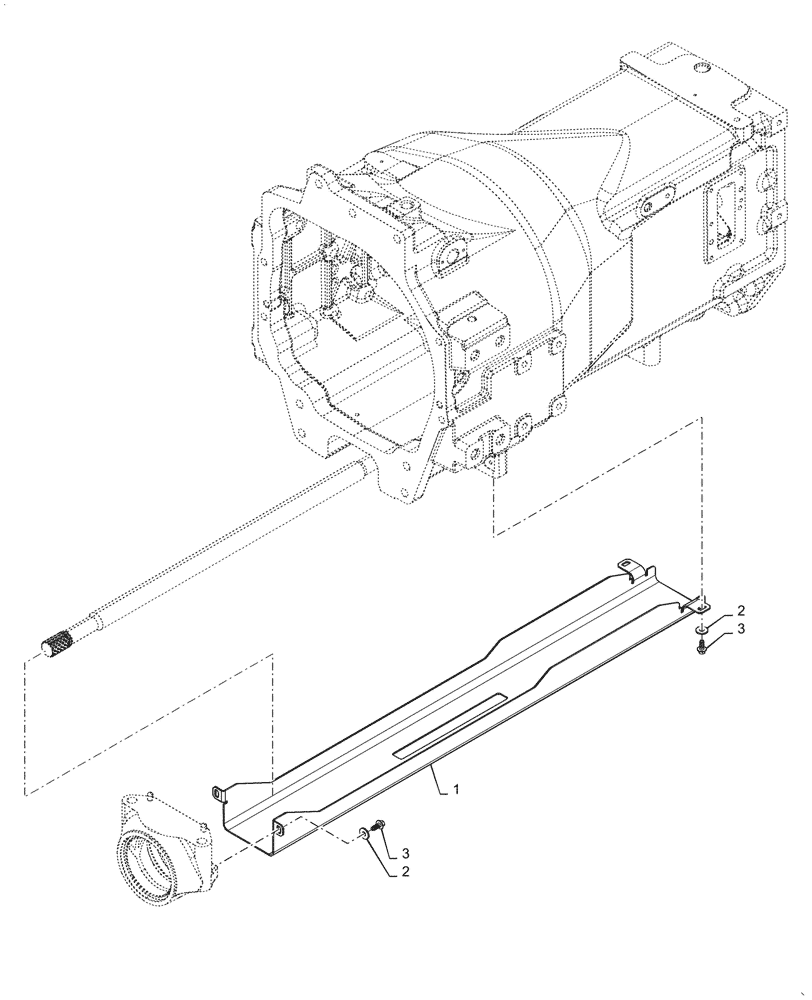

Схема запчастей Case IH PUMA1804 - (23.314.AB[02]) - DRIVE SHAFT, SHIELD (23) - FOUR WHEEL DRIVE SYSTEM
2
2
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87389033

SHIELD

Guard Plated Drive Shaft

1шт.

2

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

4шт.

3

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

4шт.
