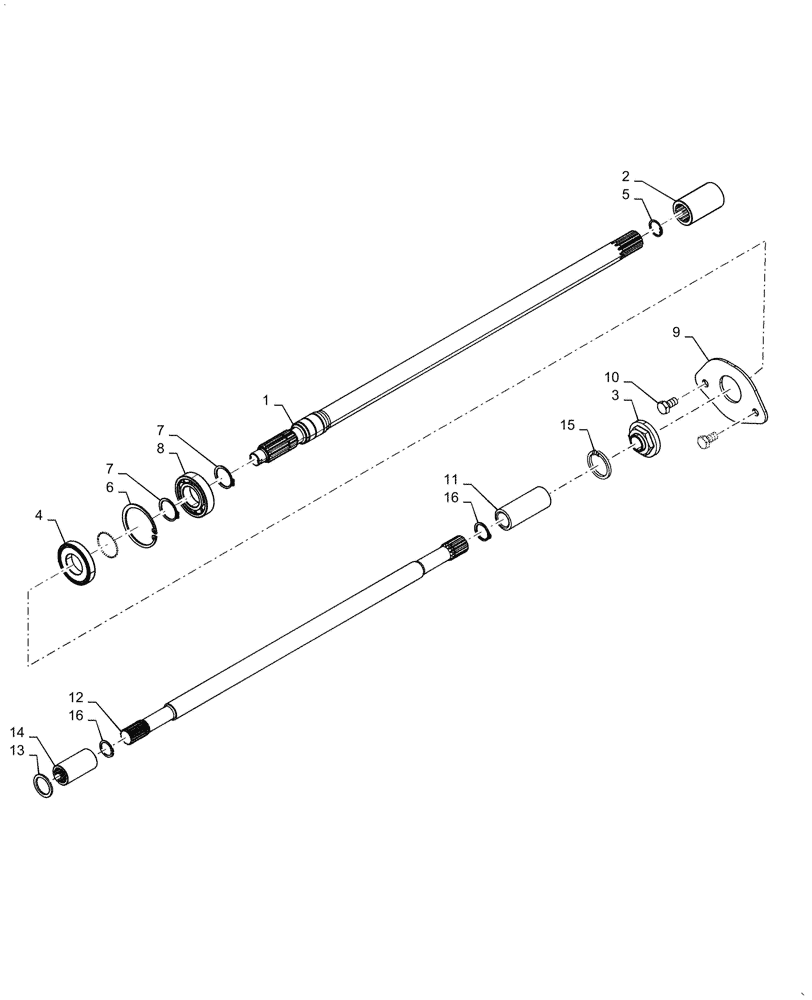

Запчасти Case IH PUMA1804 (23.314.AB[01]) - PROPELLER SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

1

87599007

SHAFT,953mm L

Drive

1шт.

2

5172239

SPLINED COUPLING,12T

Sleeve Rear Transmission Shaft

1шт.

3

5111953

NUT,M24 x 1.5

Ring

1шт.

4

47134818

SEAL,40mm ID x 80mm OD x 15mm Thk

Oil

1шт.

5

11058876

SNAP RING,M30, Int

1шт.

6

11061976

SNAP RING,M80, Int

Retaining

1шт.

7

11068876

SNAP RING,M40, Ext

Retaining

2шт.

8

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

9

47135527

FLANGE

1шт.

10

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

11

47135384

SPLINED COUPLING,12T

Shaft Transmission Rear Sleeve

1шт.

12

87399307

PROPELLER SHAFT,12T, 14T, 921mm L

Transmission

1шт.

13

5143583

SHIM,31.7mm ID x 42mm OD x 1mm Thk

1шт.

13

5143584

SHIM,31.7mm ID x 42mm OD x 1.2mm Thk

1шт.

13

5143585

SHIM,31.7mm ID x 42mm OD x 1.5mm Thk

1шт.

13

5143586

SHIM,32mm ID x 42mm OD x 1.8mm Thk

1шт.

13

5143587

SHIM,31.7mm ID x 42mm OD x 2mm Thk

1шт.

13

5143588

SHIM,31.7mm ID x 42mm OD x 2.2mm Thk

1шт.

13

5143589

SHIM,31.7mm ID x 42mm OD x 2.5mm Thk

1шт.

13

5143590

SHIM,31.7mm ID x 42mm OD x 2.8mm Thk

1шт.

13

5143591

SHIM,31.7mm ID x 42mm OD x 3mm Thk

1шт.

13

5143592

WASHER,31.70mm ID x 42.00mm OD x 3.30mm T

1шт.

13

5143593

WASHER,31.7mm ID x 42mm OD x 3.7mm Thk

1шт.

13

5143594

WASHER,31.7mm ID x 42mm OD x 4mm Thk

1шт.

13

5143595

WASHER,31.7mm ID x 42mm OD x 4.3mm Thk

1шт.

14

5150124

SLEEVE,14T

Front Transmission Shaft

1шт.

15

11067876

SNAP RING,M30, Ext

1шт.

16

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.
