Запчасти Case IH PUMA1804 (21.160.AA[05]) - ENGAGEMENT CLUTCH CONTROL - DRIVE SHAFT, GUARD (21) - TRANSMISSION

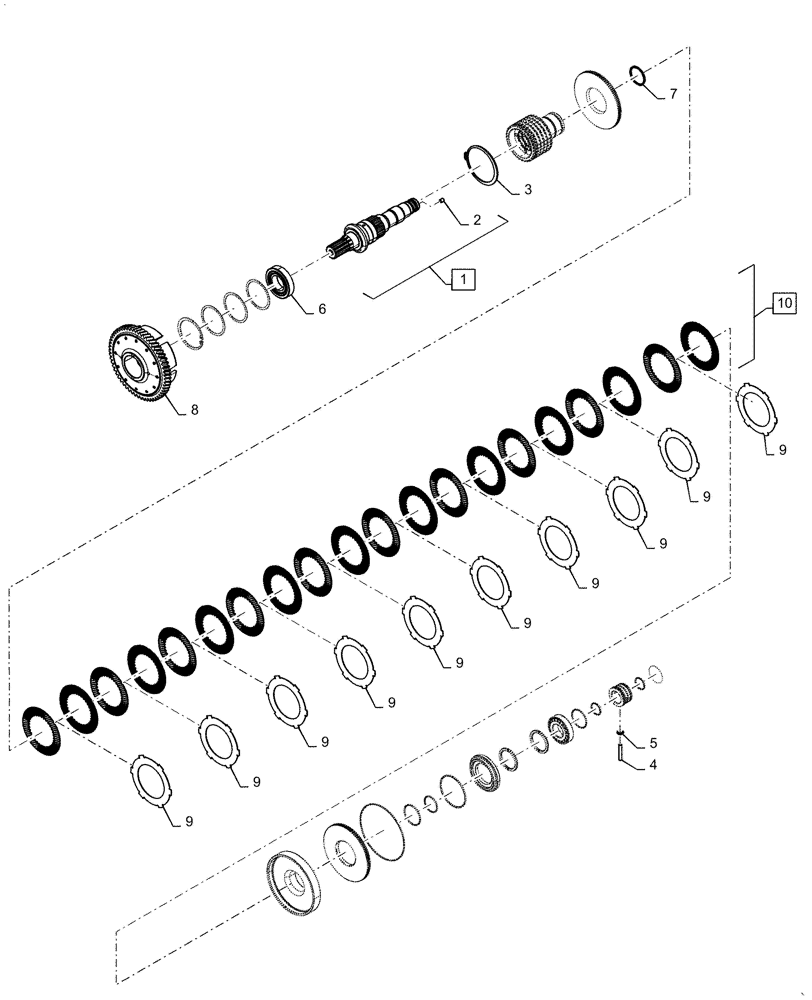

Схема запчастей Case IH PUMA1804 - (21.160.AA[05]) - ENGAGEMENT CLUTCH CONTROL - DRIVE SHAFT, GUARD (21) - TRANSMISSION
1
8
4
9
9
9
10
9
2
5
3
9
9
9
9
6
9
7
9

Артикул

Название

Примечание

Количество

1

5183786

SHAFT,287mm L

With Plug, Incl 2

1шт.

2

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

3

5139462

SNAP RING,3mm Thk

Circlip

1шт.

4

14516210

DOWEL,M7 x 45

Pin Straight

1шт.

5

14453080

O-RING,0.426" ID x 0.07"

1шт.

6

26799960

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

7

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

8

87495765

DRIVING GEAR,Z58

1шт.

9

84177629

DRIVE PLATE,99mm ID x 152mm OD x 1.5mm Thk

Clutch

9шт.

10

5163904

DISC

Clutch

10шт.

Выбрано товаров: 10
