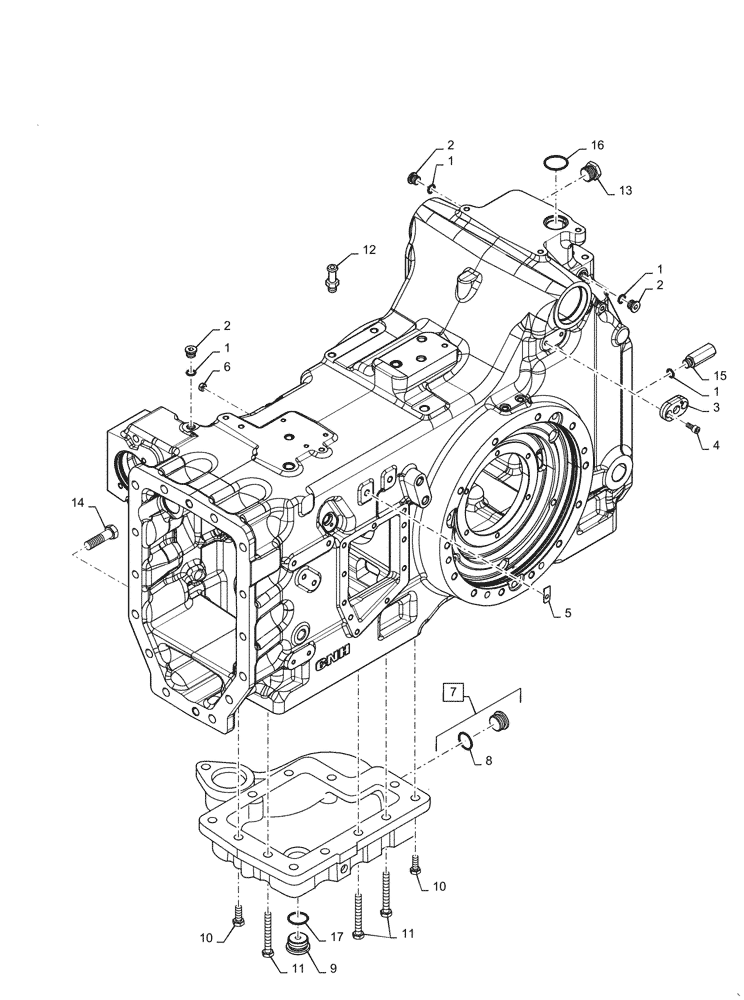

Запчасти Case IH PUMA1804 (21.118.AF[03]) - TRANSMISSION, REAR AXLE HOUSING (21) - TRANSMISSION

1

14437885

O-RING,13.30mm ID x 2.40mm

4шт.

2

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

Hex Socket

3шт.

3

47132374

SPACER

1шт.

4

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

5

14198700

LOCKING PLATE,M8

1шт.

6

16100824

NUT,M8, Cl 10

1шт.

7

5185747

PLUG,1"13/16-12

Heater Hole, Incl 8

1шт.

8

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

9

87687750

MAGNETIC PLUG,Hex, M33 X 2 X 16mm

1шт.

10

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

9шт.

11

15971424

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

3шт.

12

73401329

ELEC CONNECTOR,3/8-18

1шт.

12

82894853

FITTING,69 D x 3/16"-1/8

Hose Beaded

1шт.

13

83957506

PLUG,3/4"

1шт.

14

15981134

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

2шт.

15

87683202

PLUG,Hex, M16 x 1.5 x M8 x 1.25

1шт.

16

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

17

14438285

O-RING,29.5mm ID x 3.0mm

1шт.
