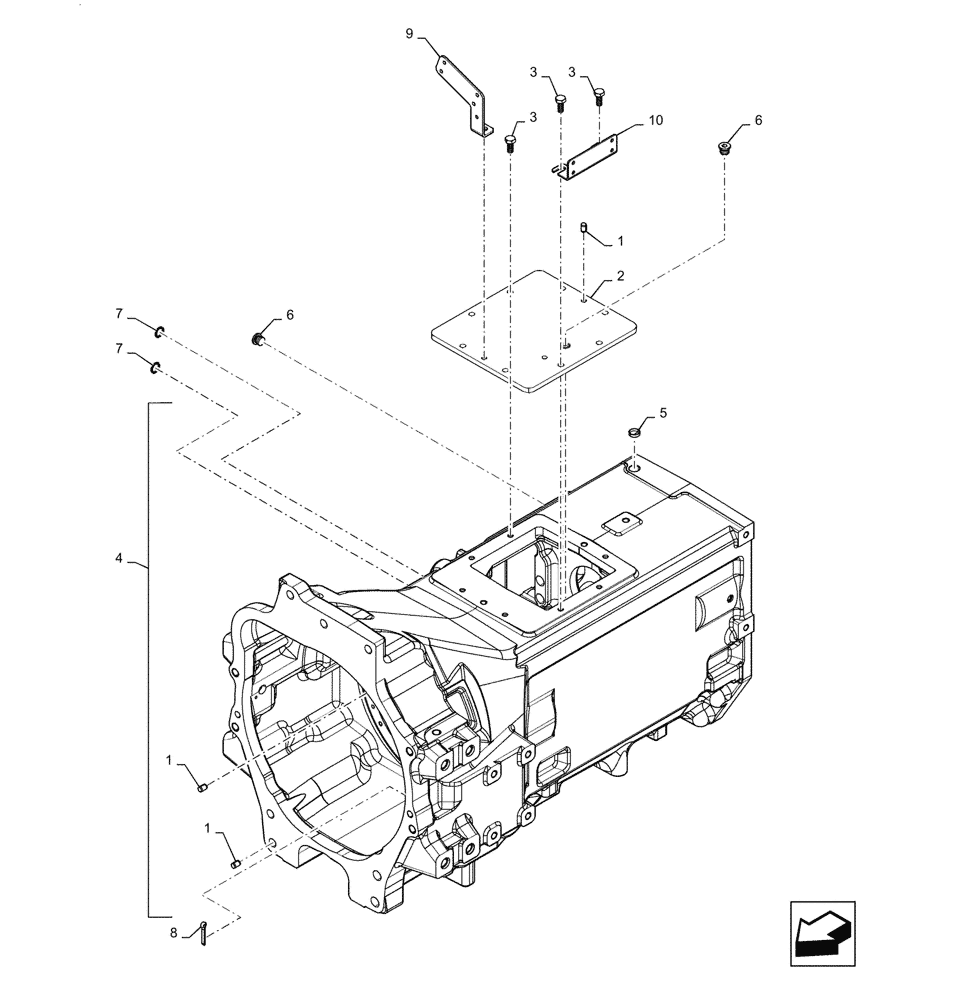

Запчасти Case IH PUMA1804 (21.111.AD[02]) - TRANSMISSION HOUSING COVER (21) - TRANSMISSION

1

5153109

DOWEL,10mm OD x 15mm L

Pin

4шт.

2

5186785

COVER

Transmission Housing

1шт.

3

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

4

84248416

TRANSMISSION HOUSING

Incl 1, 5

1шт.

5

14328701

PLUG,M20, Tapered

Cup Conical

1шт.

6

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

2шт.

7

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

8

10798204

COTTER PIN,M6.3 x 32

1шт.

9

87671389

SUPPORT

Bracket Harness

1шт.

10

87652791

SUPPORT

Bracket - Transmission Harness

1шт.
