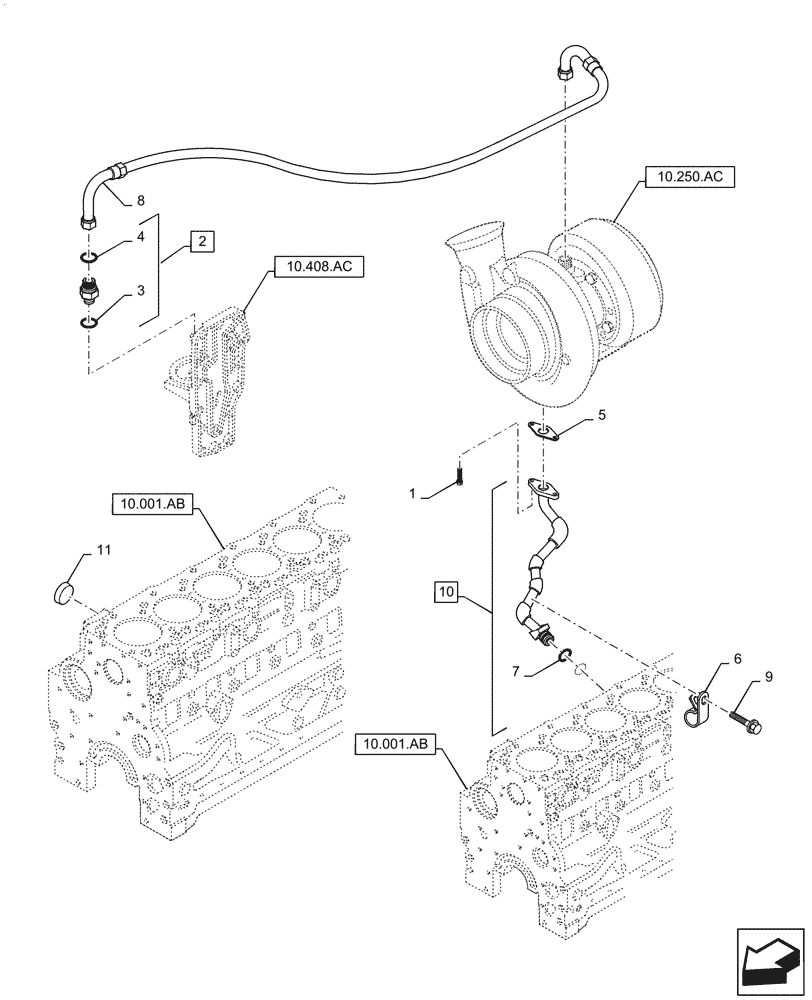

Запчасти Case IH PUMA1654 (10.250.AE[01]) - PIPING ENGINE OIL, TP38025 (10) - ENGINE

1

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

2шт.

2

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

Union, Male, Incl 3, 4

1шт.

3

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

4891288

GASKET,0.8mm Thk

Oil Drain

1шт.

6

4896893

CLAMP,20mm W

Clip - Pipe Support

1шт.

7

2852801

O-RING

2шт.

8

2855471

PIPE

Oil Supply

1шт.

9

4899037

SCREW

1шт.

10

47750046

PIPE

Assy, Turbocharger Oil Return, Incl 7

1шт.

11

4895089

PLUG,0.886" L

Expansion

1шт.
