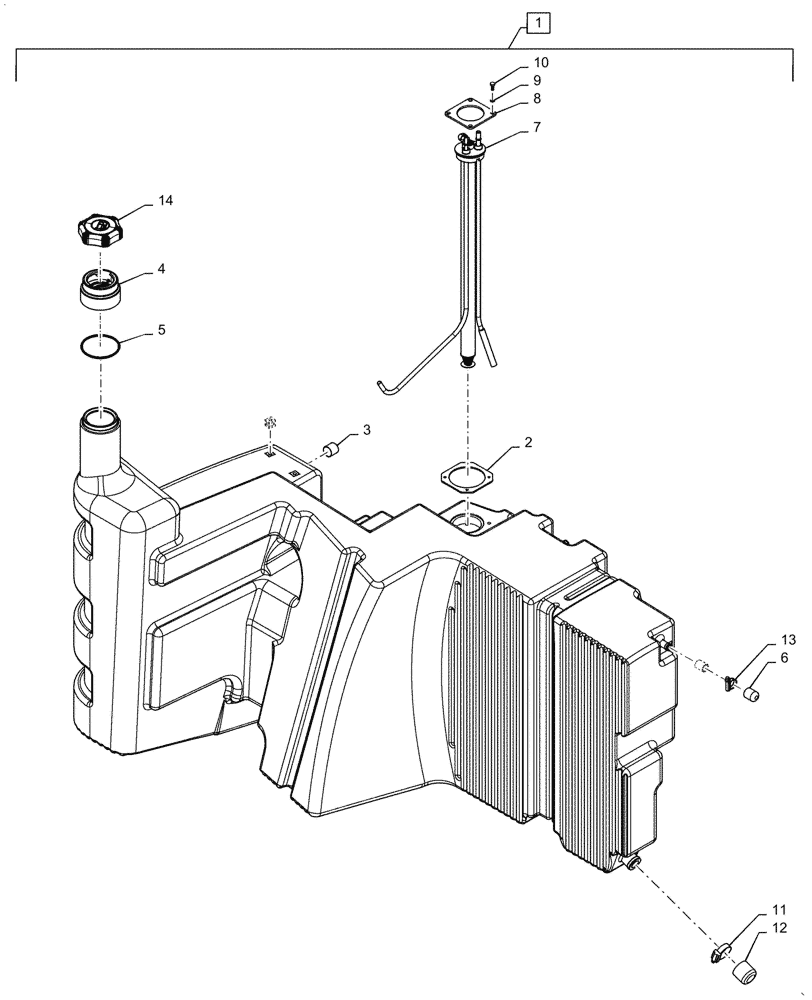

Запчасти Case IH PUMA1654 (10.216.AI[03]) - FUEL TANK ASSY (10) - ENGINE

1

47469840

FUEL TANK

Assy Main Complete, Incl 2 - 14

1шт.

2

87341159

PLATE

Fuel Tank Sender

1шт.

3

87587056

SLEEVE,38.5mm ID x 41.5mm OD x 40mm L

1шт.

4

84236742

NECK FILLER

1шт.

5

84284801

O-RING,3.53mm Thk x 75mm ID

1шт.

6

83952371

CAP,15mm ID X 25mm

Fuel Tank Balance Hose

1шт.

7

47463452

FUEL GAUGE

Sender Unit CCM LWB And CVT Tier 3

1шт.

8

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

Ring

1шт.

9

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

11

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

Worm Gear

1шт.

12

83998666

CAP

Plug Plastic Fuel Tube

1шт.

13

82039343

HOSE CLAMP,16mm - 27mm

Worm Gear

1шт.

14

84547727

FILLER CAP,M59, Vented

No Lockable

1шт.
