Запчасти Case IH PUMA1654 (90.160.CD) - INSTRUMENT CLUSTER - TOGGLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

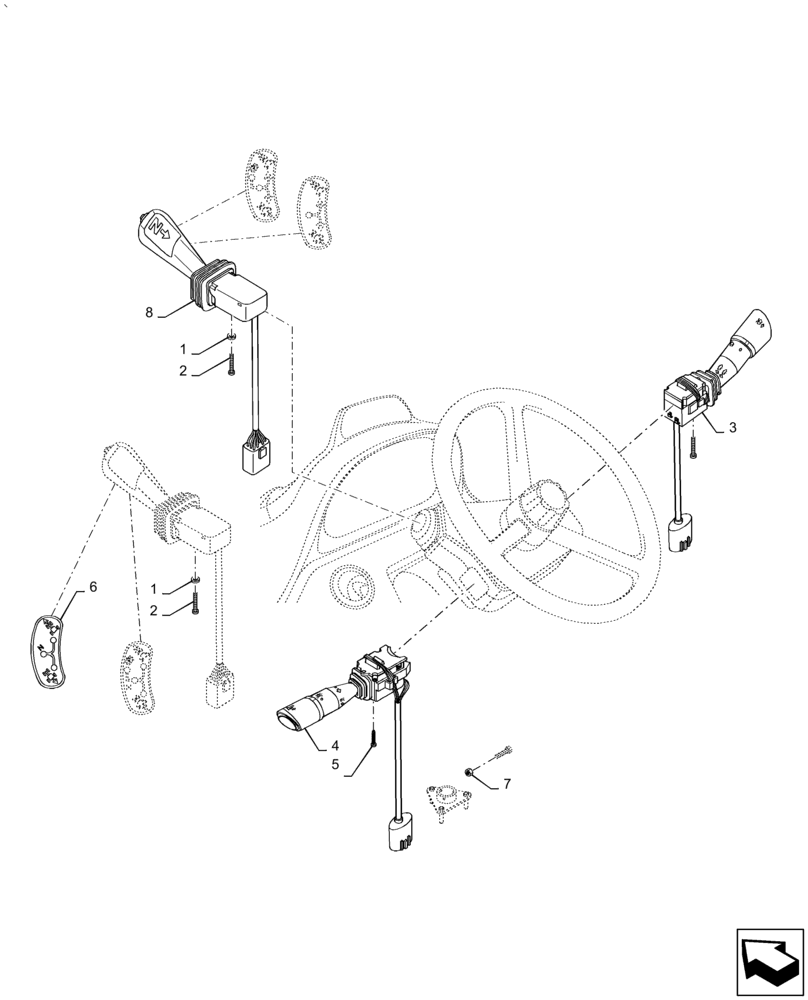

Схема запчастей Case IH PUMA1654 - (90.160.CD) - INSTRUMENT CLUSTER - TOGGLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
8
2
1
6
5
4
1
3
7

Артикул

Название

Примечание

Количество

1

10615279

LOCK WASHER,M4, Serr

3шт.

2

82880809

SCREW,Pan, M4 x 8mm, Gr 4.8

3шт.

3

84288425

SWITCH

Wash Wipe

1шт.

4

87490159

SWITCH ASSY

Headlight Self Cancelling Turn Indicators, VAR.602

1шт.

5

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

M6 x 13

3шт.

6

84178421

DECAL

Only for Models with Mechanical Remotes

1шт.

7

10794011

NUT,M4, Cl 8

3шт.

8

47613301

LEVER

1шт.

Выбрано товаров: 8
