(90.160.BY[05]) - FRONT LEFT CAB STORAGE BOX

Запчасти Case IH PUMA1654 (90.160.BY[05]) - FRONT LEFT CAB STORAGE BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS

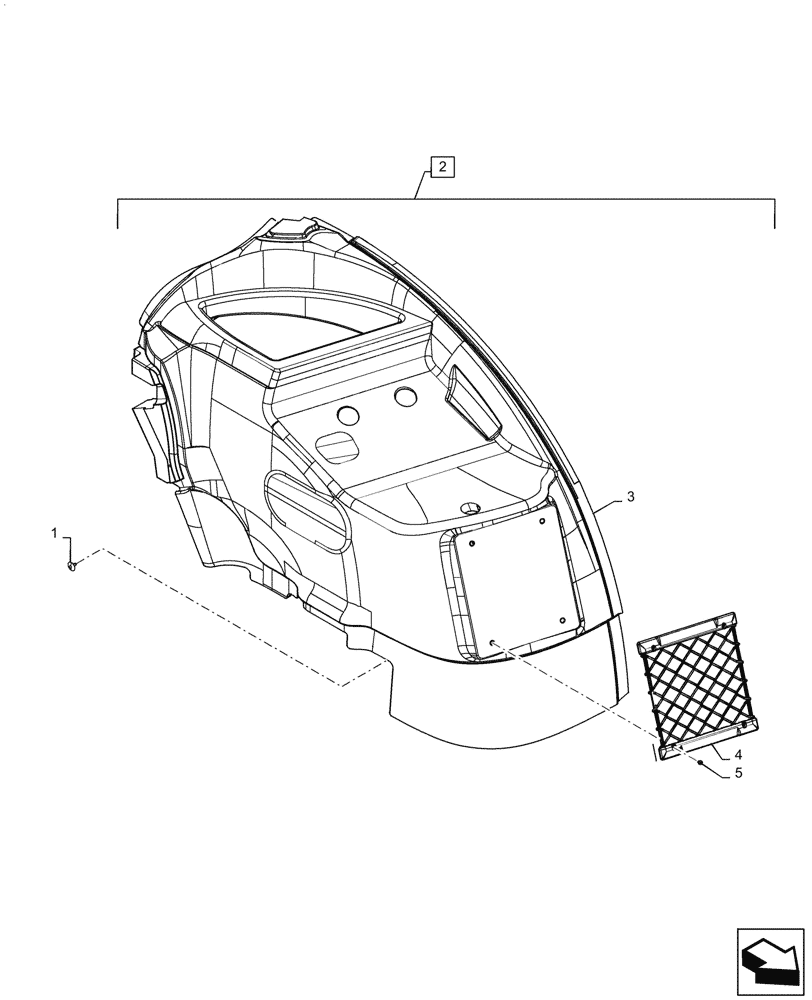

Схема запчастей Case IH PUMA1654 - (90.160.BY[05]) - FRONT LEFT CAB STORAGE BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
5
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87539768

ANCHOR,Button Hd, 4.70 mm x 11.00 mm, Nylon

Stud - Trim Mounting

2шт.

2

47411454

SOFT TRIM

Assy LH Case W/Seat Pass., Incl 3 - 5

1шт.

3

47389188

SOFT TRIM

LH Case W/Seat Pass. Ptd

1шт.

4

47476163

NET

Soft Trim LH

1шт.

5

13271817

SCREW,Pozidriv Pan Hd, M4 x 8mm, Cl 5.8, Full Thd

4шт.

Выбрано товаров: 5
