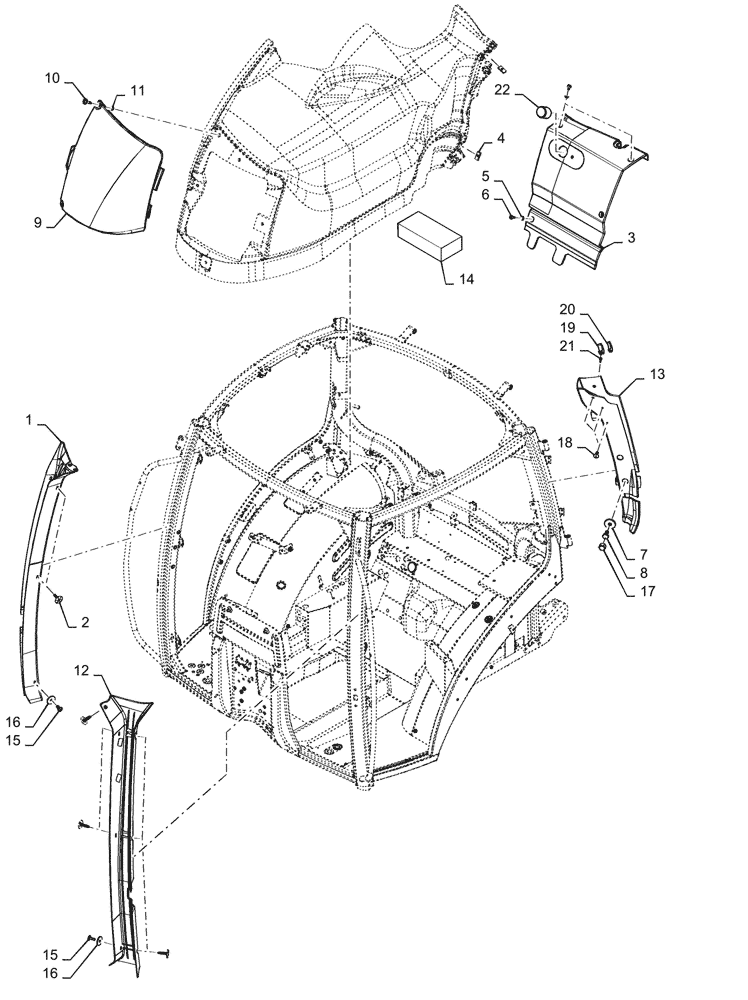

Запчасти Case IH PUMA1654 (90.160.BI[01]) - CAB, PILLAR, TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84364974

PADDING

Cover Whe Pillar RH Trim

1шт.

2

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

Retainer Roof Trim Panel

13шт.

3

84213367

PANEL

Electronics Module-Case

1шт.

4

87567755

SPRING NUT,M5

2шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

6

84187813

SCREW,Tap, Torx Pan Hd, M5.5 x 1.8 x 16mm

Tapping

4шт.

7

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

Hinge Pillar Trim Retaining

2шт.

8

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

9

87734672

COVER

Fuse Relay - Carrier Assy NH

1шт.

10

84193550

FASTENER,Black

Carrier Door

2шт.

11

87734456

RETAINER,13mm OD x 0.8mm Thk

Carrier Door

2шт.

12

84325618

COVER

A Pillar - LH Case

1шт.

13

84599513

COVER

LH C Pillar Case Painted

1шт.

14

81870060

FOAM INSULATION

Floor Pan Under Seat

1шт.

15

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

1шт.

16

12640607

WASHER,6.15mm ID x 25mm OD x 2mm Thk

1шт.

17

82012814

CAP,M10

2шт.

18

82023460

STUD,M7.85 x 19.50mm, Plastic

Fastener

4шт.

19

82872313

COAT HOOK

1шт.

20

83904461

RETAINER

r- Coat Hook

1шт.

21

82880745

SCREW,Phillips Drive, Pan HD, M4 x 16mm, Cl 4.8

Washer

1шт.

22

47998661

PLUG,35mm OD x 11.5mm L

Locking Hole

1шт.
