Запчасти Case IH PUMA1654 (90.160.AX[03]) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS

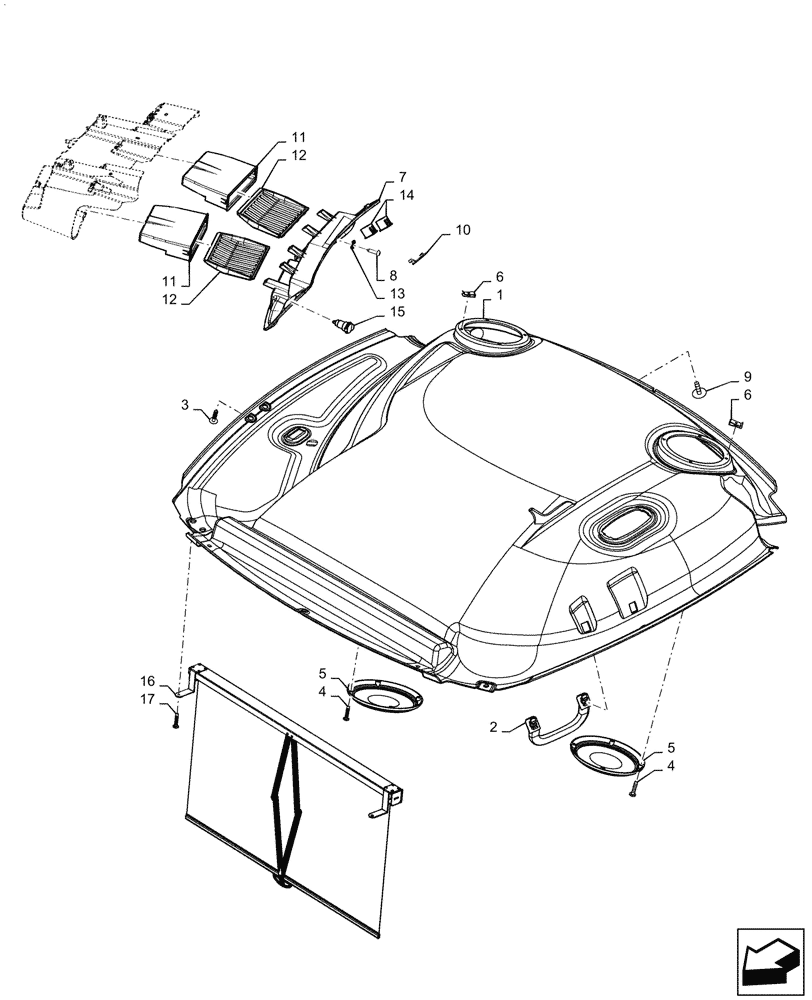

Схема запчастей Case IH PUMA1654 - (90.160.AX[03]) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS
16
17
3
11
1
6
6
14
12
2
11
15
10
4
12
5
4
8
5
7
13
9

Артикул

Название

Примечание

Количество

1

47365206

HEADLINER

1шт.

2

84227380

HANDLE

Support

1шт.

3

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

Fir Tree

5шт.

4

15916007

SELF-TAP SCREW,Pozidriv Flat Hd Csk, M3.50 x 1.3 x 19mm

8шт.

5

82022875

GRILLE,185mm OD

Assy-Speaker

2шт.

6

47557619

CLIP,M3.50 x 19mm

8шт.

7

47778962

CONSOLE

Bezel Case Wheat Painted

1шт.

8

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

Tapping

4шт.

9

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

Retainer Roof Trim Panel

1шт.

10

47363750

PLUG,23.1mm OD

Case

1шт.

11

47364183

BOX

Carrier Bezel Case

2шт.

12

47470835

INSERT

Storage

2шт.

13

14452480

O-RING,0.07" Thk x 0.145" ID, -7, Cl 5, 75 Duro

1шт.

14

82022763

PLUG

Plate

2шт.

15

47406282

CIGARETTE LIGHTER

1шт.

16

48017224

SUN VISOR

1шт.

17

47422633

SCREW,M5 x 20mm

2шт.

Выбрано товаров: 17
