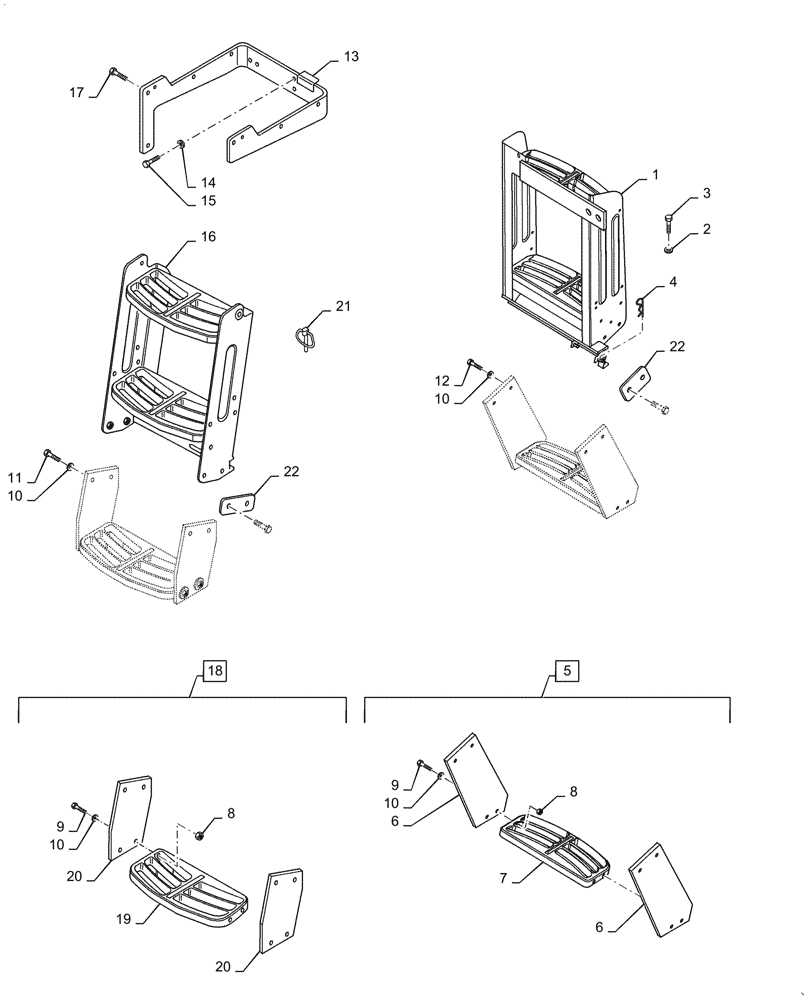

Запчасти Case IH PUMA1654 (90.160.AS[02]) - FOOT STEP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84476488

FOOT BOARD

Step Blk Upper Assy LH

1шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

3

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

4

81865839

COTTER PIN

Hair

2шт.

5

87565419

FOOT BOARD

Lower Rubber Step Assy, Incl 6 - 10

1шт.

6

87565408

SUPPORT

Step Rubber

2шт.

7

87371925

STEP

Rubber Supported Narrow Tread

1шт.

8

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

8шт.

9

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

8шт.

10

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

16шт.

11

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

4шт.

12

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

13

84181565

SUPPORT

Frame Assy Support

1шт.

14

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

15

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

16

87484827

FOOT BOARD

Step Upper RH Assy

1шт.

17

84492886

STEP BOLT,M10 x 27mm

2шт.

18

87484839

STEP

Lower Narrow Rubber Assy, Incl 8 - 10, 20, 21

1шт.

19

87371923

STEP

Tread Rubber Step Assy

1шт.

20

87484838

SUPPORT

Lower Step

2шт.

21

81810390

LINCH PIN,11.18mm OD

1шт.

22

84475630

MOUNTING PLATE

Bracket, Step Support

2шт.
