Запчасти Case IH PUMA1654 (90.156.AB[01]) - REAR WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

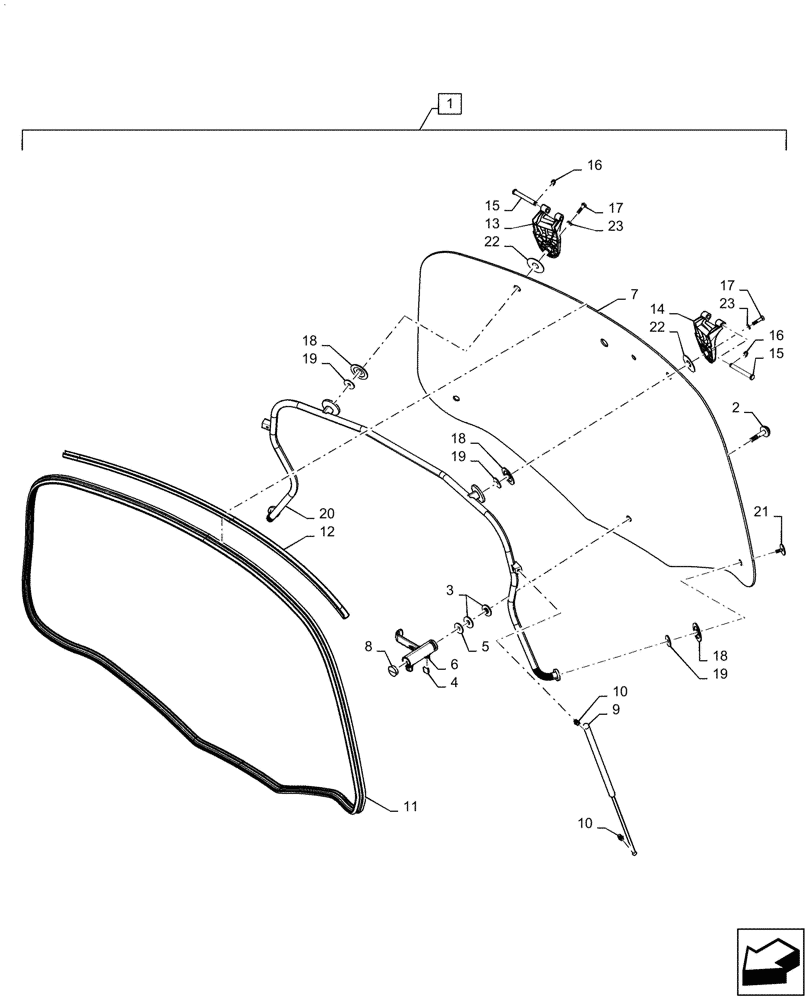

Схема запчастей Case IH PUMA1654 - (90.156.AB[01]) - REAR WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
7
15
2
19
1
21
8
20
18
13
14
16
9
15
4
6
17
3
16
17
18
22
19
23
22
5
19
10
18
10
12
23

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Window Rear Open W. Scn., Incl 2 - 23

1шт.

2

47464541

BOLT,M12 x 1.75 x 57mm

Window

1шт.

3

81865223

SEALING WASHER,12.8mm ID x 36mm OD x 6.5mm Thk

Back Window Regulator

2шт.

4

84390533

RUBBER BLOCK,19.8mm L x 19.8mm W x 6.4mm Thk

Pad Bumper Stop

1шт.

5

83995286

SEALING WASHER,M12.5 x 35 x 3 Thk

Back Window Latch

1шт.

6

87541759

HANDLE

Assy Window Back

1шт.

7

87744542

GLASS

Rear Window

1шт.

8

83961986

PLUG,30mm

Rear Window Handle

1шт.

9

82022486

GAS STRUT,486mm Extended, 286mm Compressed

2шт.

10

83952214

BALL STUD,M8 x 29.5mm OAL

4шт.

11

82027998

WEATHERSTRIP,4125mm L

Window Rear

1шт.

12

82034552

RUBBER SEAL,1235mm L

1шт.

13

82034266

HINGE

Rear Window RH

1шт.

14

82034267

HINGE

Rear Window LH

1шт.

15

82033133

PIN,17mm OD x 96mm L

Rear Window Hinge

2шт.

16

11088171

SNAP RING,M11

E

2шт.

17

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

18

44995003

SEALING WASHER,20.0mm ID x 60.0mm OD x 3.0mm Thk

Moulded Door Hinge

4шт.

19

81868323

SEALING WASHER,8.1mm ID x 36mm OD x 5.3mm Thk

Back Window Regulator

4шт.

20

82030829

HANDLE

Asy Rear Window (Ptd)

1шт.

21

82013304

SCREW,Pan HD, M8 x 22mm

2шт.

22

82022441

SHIM,22mm ID x 59.5mm OD x 2mm Thk

Washer Hinge

2шт.

23

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 23
