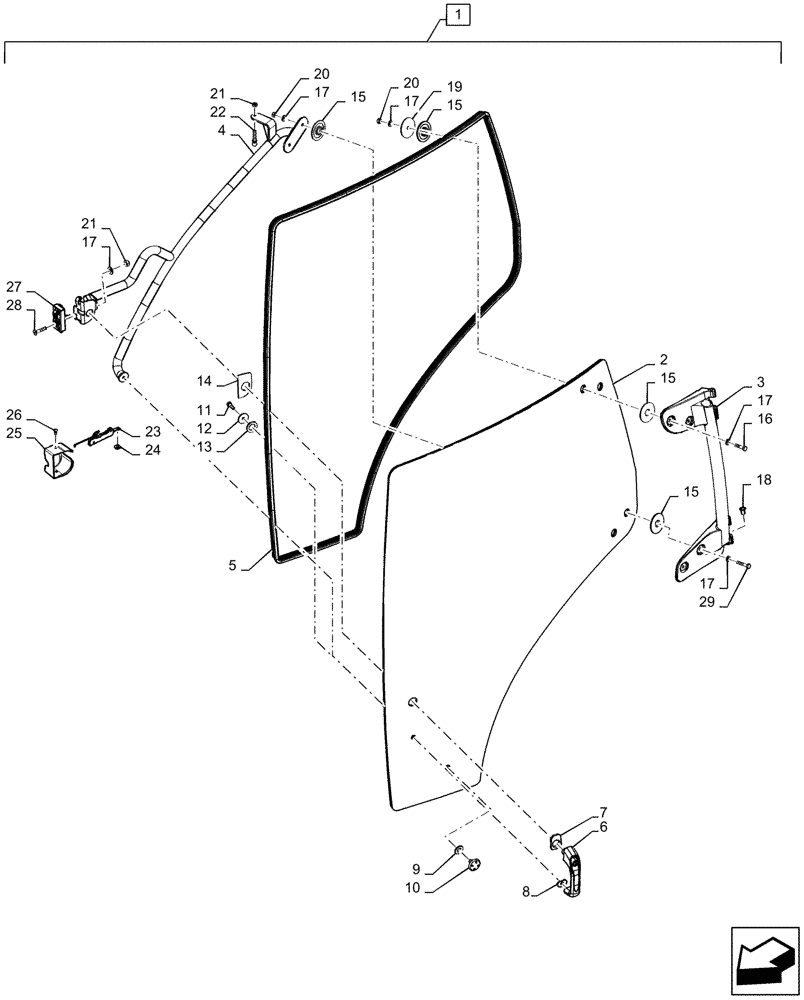

Запчасти Case IH PUMA1654 (90.154.AA[05]) - CAB DOOR, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84157761

DOOR

Assy Lh, Incl 2 - 31

1шт.

2

87560786

LH CAB DOOR

1шт.

3

87301643

HINGE

Frame Door LH Painted

1шт.

4

87303638

HANDLE

Grabrail Assy-Door LH (Painted)

1шт.

5

84275610

WEATHERSTRIP

Seal Door

1шт.

6

82029168

HANDLE

Door Outer

1шт.

7

82029170

GASKET,5-6.5mm Thk, 32mm ID

Door Handle-Upper

1шт.

8

82029171

GASKET,5mm Thk, 12mm ID

Door Handle Lower

1шт.

9

81868323

SEALING WASHER,8.1mm ID x 36mm OD x 5.3mm Thk

Back Window Regulator

1шт.

10

84153260

CAP,M8 x 20, Black

Door Assy

1шт.

11

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

Bolt

1шт.

12

12640607

WASHER,6.15mm ID x 25mm OD x 2mm Thk

1шт.

13

82029142

GASKET,16mm ID x 26mm OD x 3mm Thk

Door Handle Inside

1шт.

14

82029165

GASKET,5.3-6.9mm Thk

Latch Bracket - LH

1шт.

15

87528178

SEALING WASHER,20mm ID x 60mm OD x 5.5mm Thk

Moulded Door Hinge

8шт.

16

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

17

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

10шт.

18

82027697

BUSHING,9.5mm ID x 18mm OD x 17mm L

Sleeve Conical Flanged

1шт.

19

44995004

WASHER,9mm ID x 60mm OD x 3.4mm Thk

2шт.

20

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

6шт.

21

81851141

NUT,M8 x 1.25, Cl 8

1шт.

22

87356752

BALL STUD,M8 x 1.25 x 35mm

Door Regulator Pivot

1шт.

23

87566909

LEVER

Assy Door Latch

1шт.

24

87616696

BOLT,32mm D

Package Screw/Washer Made Up For Spare Part

1шт.

25

82034201

COVER

Latch LH

1шт.

26

82029174

RUBBER BUTTON,6mm Hole

Trim Stud

2шт.

27

84227452

LH DOOR LOCK

Latch Assy

1шт.

28

14442431

SCREW,Flat Csk Hd, M8 x 1.25 x 40mm, Cl 10.9

2шт.

29

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

Bolt

2шт.
