Запчасти Case IH PUMA1654 (90.151.AG[05]) - ARMREST, CONTROL UNIT, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

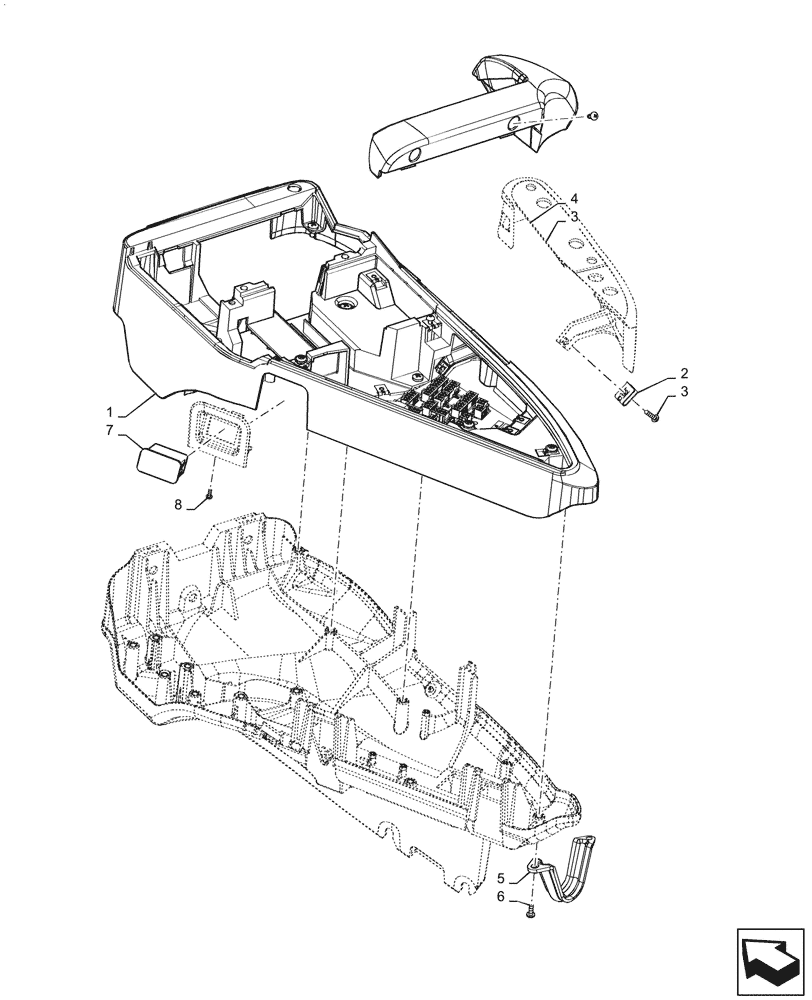

Схема запчастей Case IH PUMA1654 - (90.151.AG[05]) - ARMREST, CONTROL UNIT, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
8
2
3
6
3
7
5

Артикул

Название

Примечание

Количество

1

84150725

SHELL

Upper

1шт.

2

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

18шт.

3

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

9шт.

4

87493863

HOLDER

Support Wrist

1шт.

5

87579853

RETAINER,14.9mm W x 56.7mm L

RH Armest Hardness

1шт.

6

15902607

SELF-TAP SCREW,Cross Pan Hd, M3.50 x 1.3 x 9.50mm

2шт.

7

82022763

PLUG

Plate

1шт.

8

82016959

SCREW,M3.5 x 12mm

1шт.

Выбрано товаров: 8
