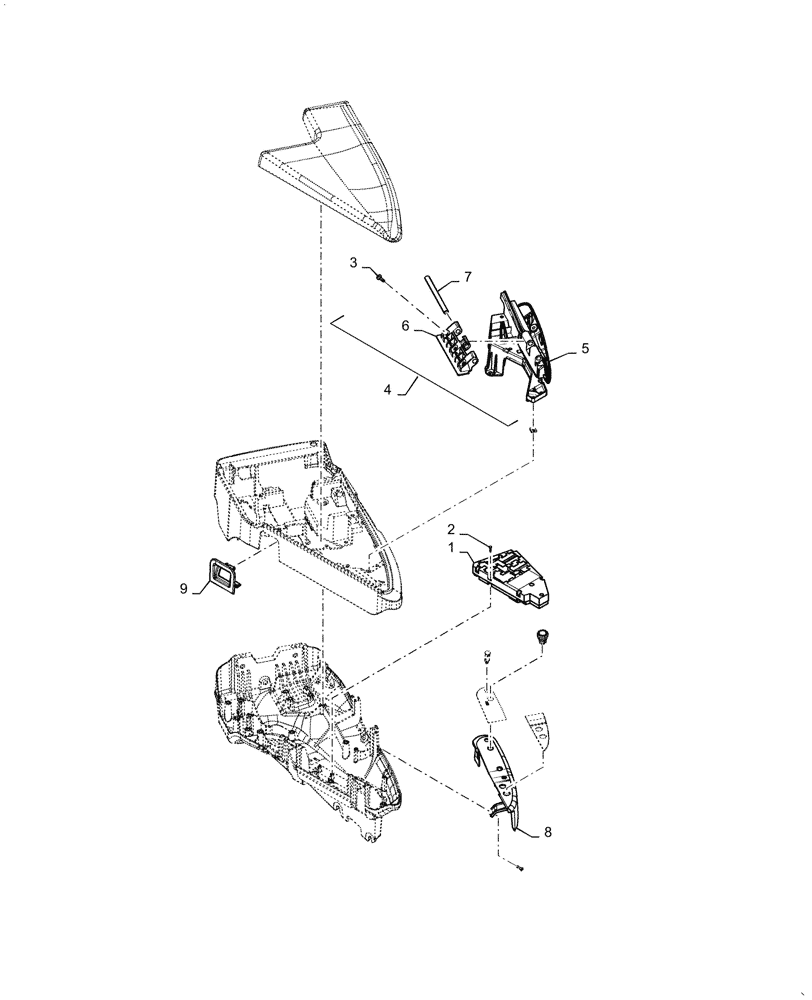

Запчасти Case IH PUMA1654 (90.151.AG[03]) - ARMREST, CONTROL UNIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47443335

MODULE

Armrest Control

1шт.

2

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

5шт.

3

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

9шт.

4

84204558

HINGE

Assy Case LH

1шт.

5

84153062

HINGE

Fixed Case LH

1шт.

6

87487262

HINGE

Cushion Moving

1шт.

7

84147684

PIN,10mm OD x 144mm L

Hinge

1шт.

8

84216544

HOUSING

PTO Case

1шт.

9

84150714

BEZEL

Adjust - With Switch - Case

1шт.
