Запчасти Case IH PUMA1654 (90.150.BG[04]) - EEAA ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

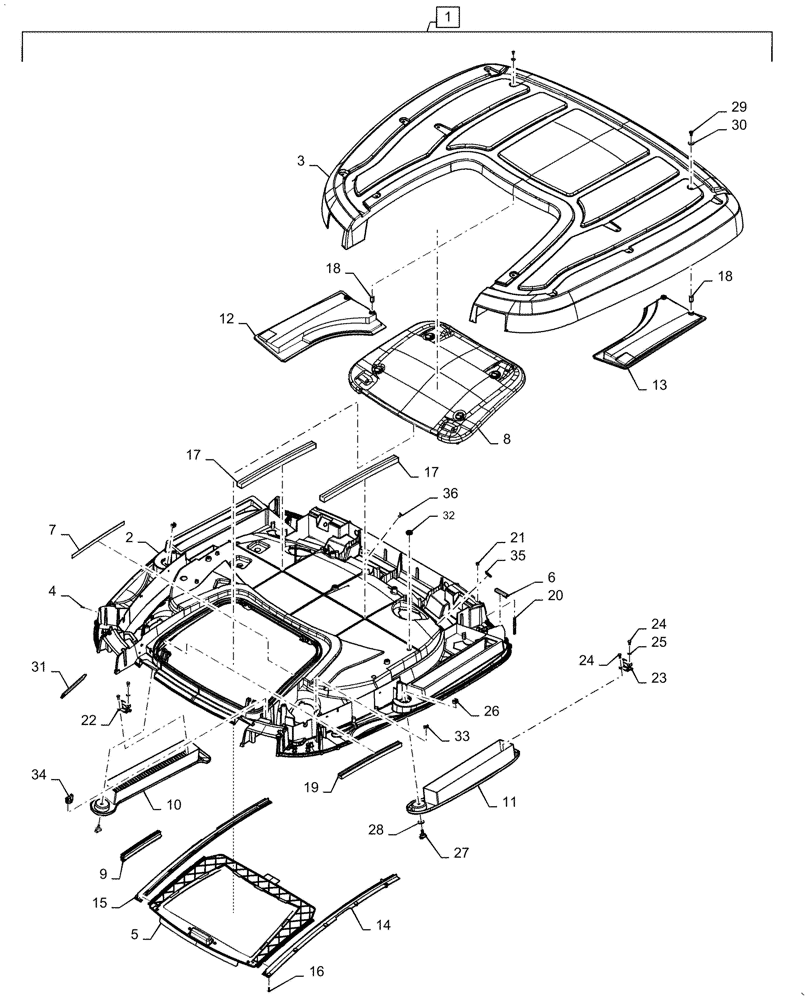

Схема запчастей Case IH PUMA1654 - (90.150.BG[04]) - EEAA ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
21
9
27
16
10
18
17
22
34
28
29
18
26
19
36
32
30
24
5
14
11
31
15
24
13
23
4
12
25
2
35
8
17
3
7
1
33
20
6

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Roof Assy Outer-W-Hvw-Case, Incl 2 - 36

1шт.

2

47471799

ROOF FRAME

Carrier

1шт.

3

84316056

ROOF

Skin

1шт.

4

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

12шт.

5

87640273

SUN VISOR

Hvw Shade Assy(Case)

1шт.

6

82034370

SEAL

Outer Roof

1шт.

7

82000733

STRIP-GASKET

Standard Tape Adhesive Pressure

2шт.

8

84318628

WINDOW,High Visibility Module

Hight Visibility Module

1шт.

9

82032314

SEAL,for High Visibility Window

1шт.

10

87725999

SUPPORT

Filter Element RH Frame

1шт.

11

82033661

SUPPORT

Filter Element LH Frame

1шт.

12

87355892

FILTER COVER

RH Duct

1шт.

13

87398509

FILTER COVER

LH Duct

1шт.

14

87640267

GUIDE

LH Shade

1шт.

15

87640268

GUIDE

RH Shade

1шт.

16

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

10шт.

17

82035600

GASKET

Support Outer Skin Roof

2шт.

18

82034114

SPACER,M6 x 25mm L

M6-25Mm Special

12шт.

19

82028318

SEAL

Tape

1шт.

20

82034115

STUD

2шт.

21

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

22

82033679

HINGE

RH Filter Frame

1шт.

23

82033690

HINGE

LH Filter Frame

1шт.

24

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

25

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

26

87541213

NUT,Cage, M8

Filter Frame - Cage

2шт.

27

84516592

KNOB

Air Filter

2шт.

28

87524305

RETAINER,7.3mm ID x 12.5mm OD x 0.5mm Thk

2шт.

29

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

12шт.

30

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

Roof

12шт.

31

82032317

SEAL

Packing Hvw Tape

1шт.

32

82032318

PLUG

Blanking

2шт.

33

81872135

NUT,Retaining, M4.20

Instrument Cluster Retaining

16шт.

34

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

Wire

1шт.

35

87519328

BLANK-OFF PLUG,M32 x 9 x 3.1

1шт.

36

87308028

PLUG

Plastic

1шт.

Выбрано товаров: 36
