Запчасти Case IH PUMA1654 (90.124.AM[02]) - DRIVER SEAT, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

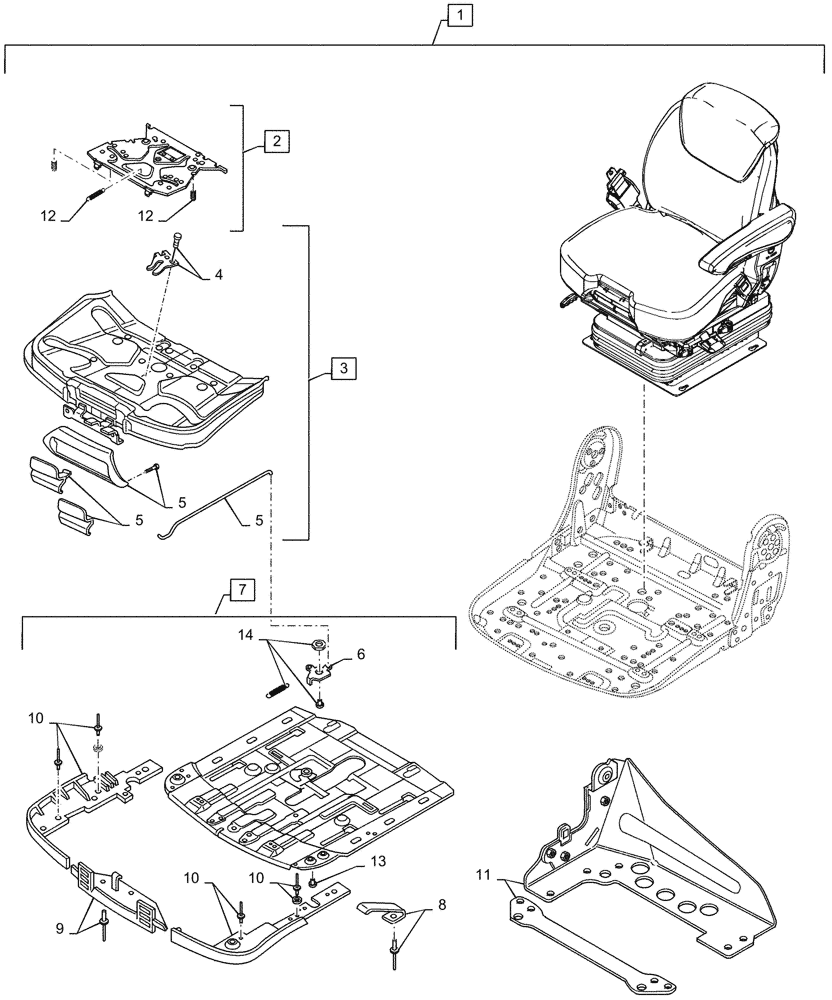

Схема запчастей Case IH PUMA1654 - (90.124.AM[02]) - DRIVER SEAT, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
6
5
4
10
5
7
8
12
14
2
1
11
10
9
5
13
10
12

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Kit Assy Seat Operator, Incl 2 - 14

1шт.

2

84191141

PLATE

Seat Operator Assy Service Part

1шт.

3

84191153

ADJUSTER

Kit

1шт.

4

1-34-751-739

FIXING PLATE

Spring Leaf

1шт.

5

84191160

TRIGGER

Set

1шт.

6

345775A1

LEVER

1шт.

7

84191167

ADJUSTER

Kit

1шт.

8

84191175

SEAT PLATE

I Resilient Sheet

1шт.

9

1-34-751-728

COVER

Bracket

1шт.

10

1-34-751-727

COVER

1шт.

11

84191195

SUPPORT

Frame Assy Cushion Seat

1шт.

12

84191201

SET OF PARTS

Seat Operator Assy Service

1шт.

13

84191202

SET OF PARTS

Seat Cushion

1шт.

14

84191203

CONTROL LEVER

Seat Operator Assy Service Part

1шт.

Выбрано товаров: 14
