Запчасти Case IH PUMA1654 (90.124.AM[01]) - DRIVER SEAT, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

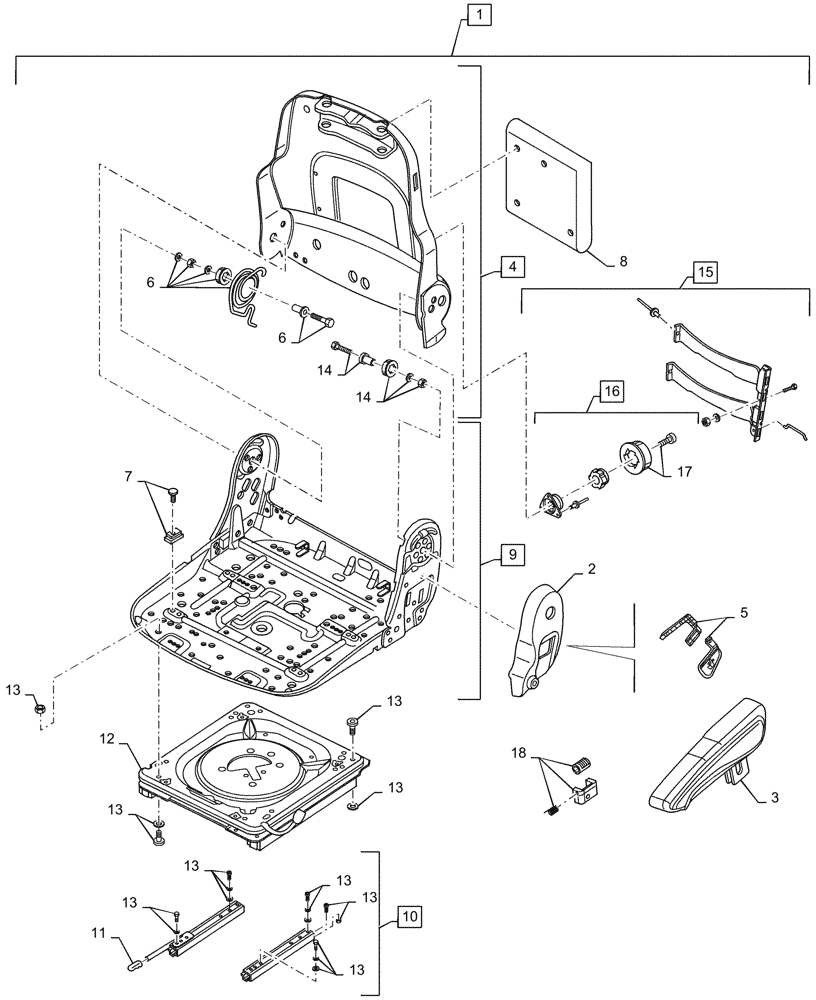

Схема запчастей Case IH PUMA1654 - (90.124.AM[01]) - DRIVER SEAT, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
13
5
6
13
13
13
6
9
11
16
13
14
2
8
7
14
4
13
15
18
12
3
13
17
10
13
1

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Kit Assy Seat Operator, Incl 2 - 18

1шт.

2

87331931

COVER

LH Trim

1шт.

3

82034988

ARMREST

1шт.

4

84191121

BACKREST

Frame Assy

1шт.

5

82034960

LEVER

Control

1шт.

6

84191131

SET OF PARTS

Kit Assy Seat Scissor Bearings

1шт.

7

84191178

SET OF PARTS

Set Glide Seat Depth

1шт.

8

47124555

BRIEF CASE

Literature Box

1шт.

9

84191188

REPAIR KIT

1шт.

10

84191191

REPAIR KIT

Assy Seat Slide Guides

1шт.

11

9971715

HANDLE

1шт.

12

84191192

SEAT SUPPORT

Kit Assy Swivel

1шт.

13

84191194

MOUNTING PARTS

Seat Operator Assy Service

1шт.

14

84191196

SET OF PARTS

Kit Assy Seat Scissor Bearings

1шт.

15

345767A1

SUPPORT

I Lumbar

1шт.

16

84191199

ACTUATOR

I Lumbar Support

1шт.

17

82034964

HANDLE

Kit Grey Lumbar Support

1шт.

18

82034946

SERVICE KIT

1шт.

Выбрано товаров: 18
