(90.124.AH[01]) - DRIVER SEAT, SEAT BACK, CUSHION

Запчасти Case IH PUMA1654 (90.124.AH[01]) - DRIVER SEAT, SEAT BACK, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

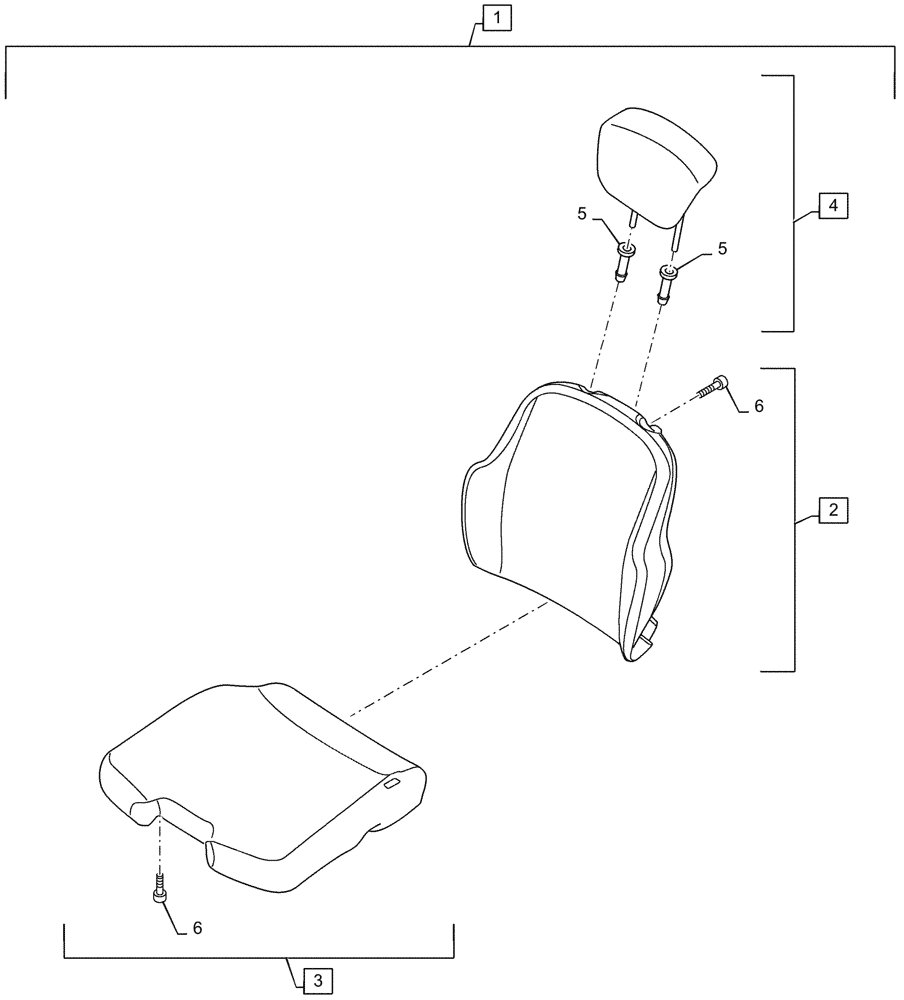

Схема запчастей Case IH PUMA1654 - (90.124.AH[01]) - DRIVER SEAT, SEAT BACK, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
6
1
5
6
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Kit Assy Seat Operator, Incl 2 - 6

1шт.

2

84172430

SEAT BACK

Backrest

1шт.

3

84191096

SEAT CUSHION,Fabric Confetti Wheat

Assy

1шт.

4

84191100

SEAT HEADREST

Assy

1шт.

5

84191112

GUIDE

Assy Headrest Seat

1шт.

6

84191200

SET OF PARTS

Mounting Cushion

1шт.

Выбрано товаров: 6
